Cable entry	Other
Number of poles	3
Suitable for fuses	NH0
Motor drive optional	no
With error protection	-
Motor drive integrated	no
Version as main switch	yes
Type of control element	Long turning handle
Equipped with connectors	yes
Position control element	Front side
Version as safety switch	yes
Rated permanent current Iu	-
Suitable for floor mounting	no
Suitable for front mounting	no
Suitable for busbar mounting	yes
Max. rated operation voltage Ue AC	1000
Degree of protection (IP), front side	IP20
Rated operation power at AC-23, 400 V	250
Rated short-time withstand current lcw	8
Version as emergency stop installation	no
Conditioned rated short-circuit current Iq	80
Type of electrical connection of main circuit	Bolt connection

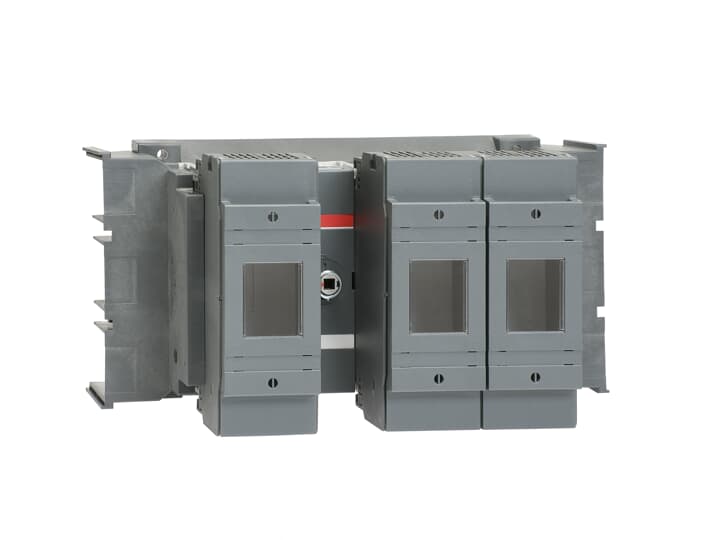

250 A DIN switchfuse terminals L and R
