Frequency
Power loss	17.2
Voltage type	AC/DC
Rated current	50
Rated voltage	400
Built-in depth	82.5
Explosion-proof	no
Pollution degree	3
Over voltage category	4
Current limiting class	3
Release characteristic	C
Number of poles (total)	4
Degree of protection (IP)	IP20
Number of protected poles	4
Flush-mounted installation	no
Rated insulation voltage Ui	690
Additional equipment possible	yes
Width in number of modular spacings	6
Ambient temperature during operating
Rated impulse withstand voltage Uimp	8
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	25
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	50

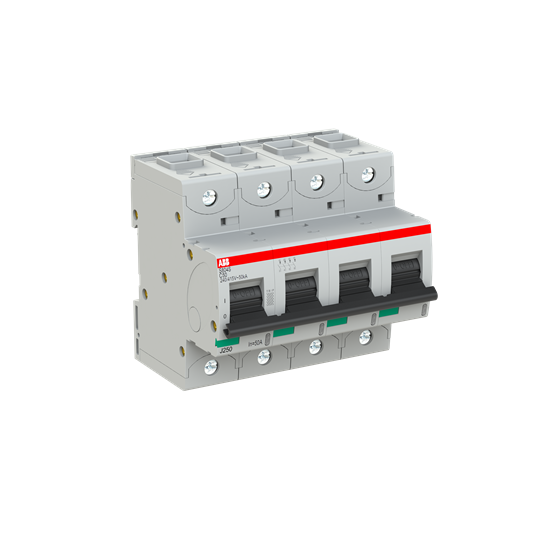

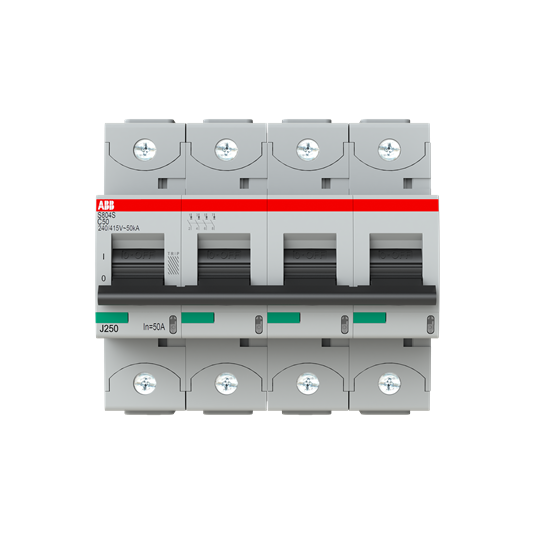

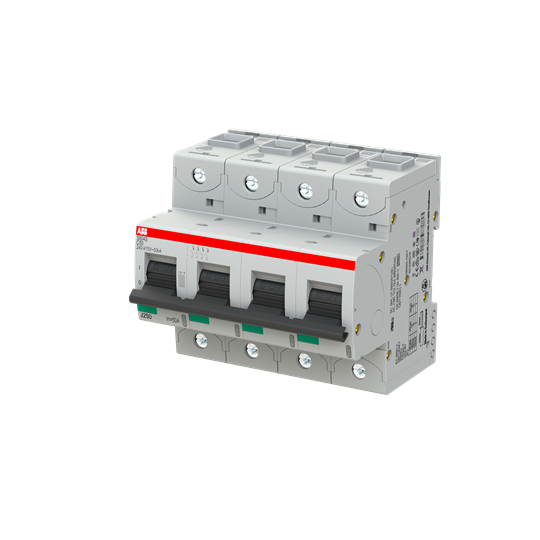

S804S-C50 4P MCB C50A 50KA
