Depth	302
Width	530
Height	418
Interlockable	-
Number of poles	4
Number of switches	0
Device construction	Built-in device fixed built-in technique
Motor drive optional	yes
Colour control element	Other
Motor drive integrated	no
Version as main switch	yes
Rated operating voltage
Type of control element	Push button
Switching power at 400 V	-
Version as safety switch	no
Voltage release optional	yes
Rated permanent current Iu	2000
With pre-assembled cabling	-
Degree of protection (NEMA)	Other
Suitable for floor mounting	no
Version as reversing switch	no
Max. rated operation voltage Ue AC	1000
Suitable for front mounting 4-hole	no
Suitable for front mounting centre	no
Suitable for intermediate mounting	no
Width in number of modular spacings	-
Rated operation power at AC-3, 400 V	-
Degree of protection (IP), front side	IP30
Rated operation power at AC-23, 400 V	-
Rated short-time withstand current lcw	40
Version as emergency stop installation	no
Version as maintenance-/service switch	no
Rated permanent current at AC-21, 400 V	2000
Rated permanent current at AC-23, 400 V	2000
Conditioned rated short-circuit current Iq	-
Suitable for distribution board installation	yes
Type of electrical connection of main circuit	Bolt connection
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0

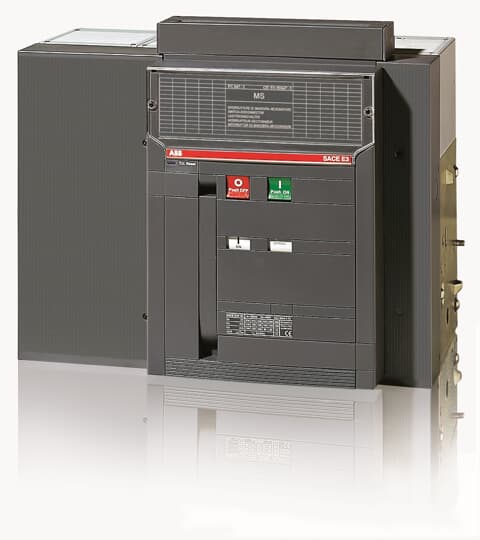

E3H/EMS20004p1000VDCFHRnew
