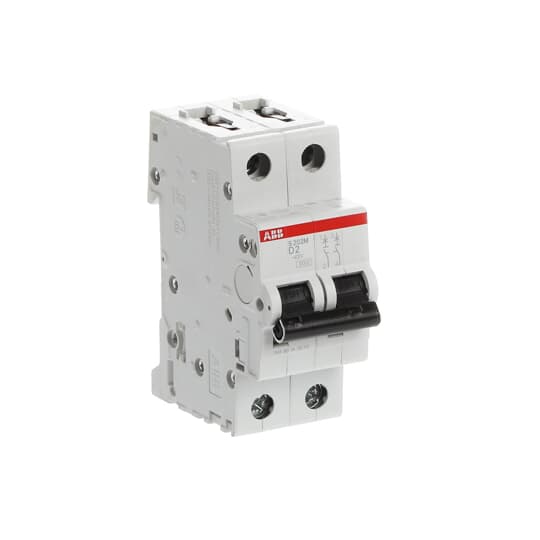

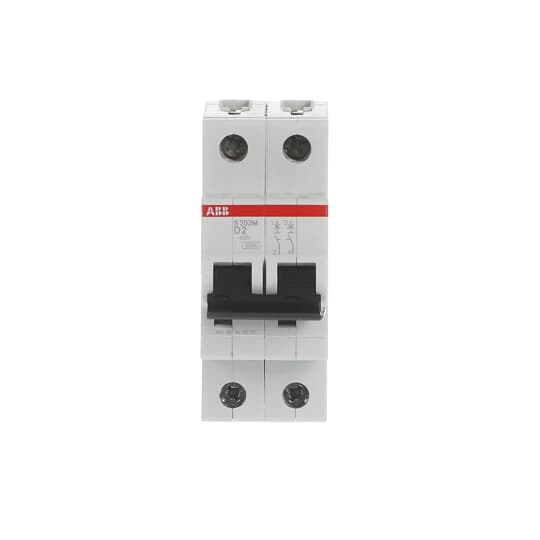

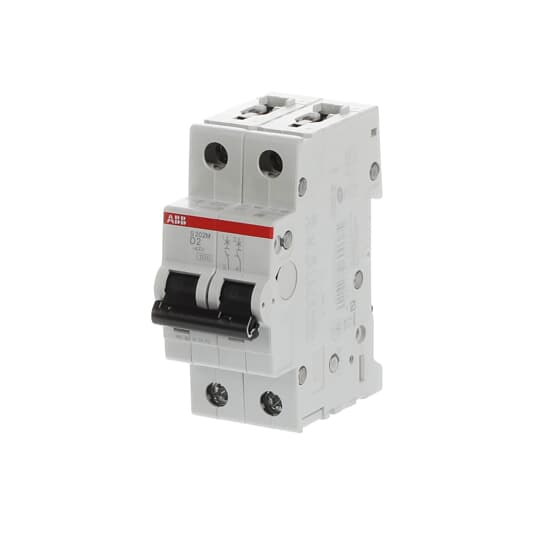

S202MD2 2P D 2A 10KA MCB

Name: S202MD2 2P D 2A 10KA MCB
Brand: ABB
SKU: 2CDS272001R0021

S200 Series Type D - MCBs - 10kA 2P
* Part number: S202M-D2
* Type D - Suitable for protection of inductive loads. eg. transformers.

Product identifiers

SKU: 2CDS272001R0021

Specifications

Frequency
Power loss	3.3
Voltage type	AC/DC
Rated current	2
Rated voltage	400
Built-in depth	69
Explosion-proof	no
Pollution degree	3
Over voltage category	3
Current limiting class	3
Release characteristic	D
Number of poles (total)	2
Degree of protection (IP)	IP20
Number of protected poles	2
Flush-mounted installation	no
Rated insulation voltage Ui	440
Additional equipment possible	yes
Width in number of modular spacings	2.0
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	25
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	15
