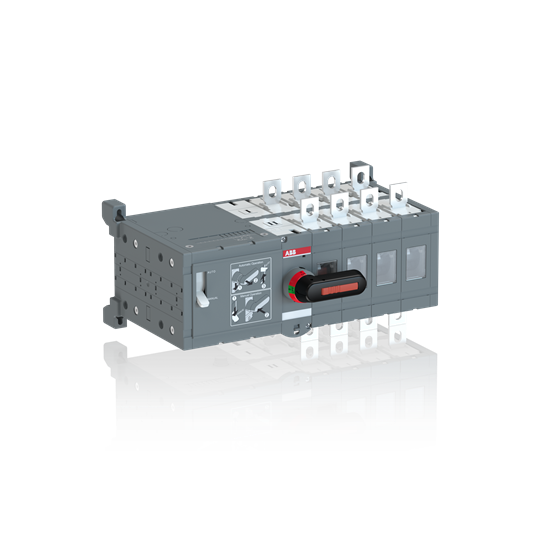

160A 4P Motorised C/O Sw 110V Motor op

Name: 160A 4P Motorised C/O Sw 110V Motor op
Brand: ABB
SKU: 1SCA022846R1080

Motorised OTM160...200 OTM160...200 change-over switches, 3 & 4 pole, I-O-II -indication
* Part number: OTM160E4CM110C
* Including a handle for manual operation, bolt kit with nut and washers for all terminals and male connectors for control circuits.
* Types OTM160-2500E_ include a clamp for the handle and spare fuses.
* Types OTM160-250E_W are equipped with extended phase distance.

Product identifiers

SKU: 1SCA022846R1080

Specifications

Depth	197
Width	307
Height	150
Interlockable	yes
Number of poles	4
Number of switches	1
Device construction	Built-in device plug-in technique
Motor drive optional	no
Colour control element	Black
Motor drive integrated	yes
Version as main switch	yes
Rated operating voltage
Type of control element	Long turning handle
Switching power at 400 V	90
Version as safety switch	no
Voltage release optional	no
Rated permanent current Iu	-
With pre-assembled cabling	-
Degree of protection (NEMA)	1
Suitable for floor mounting	no
Version as reversing switch	no
Max. rated operation voltage Ue AC	1000
Suitable for front mounting 4-hole	yes
Suitable for front mounting centre	no
Suitable for intermediate mounting	no
Width in number of modular spacings	-
Rated operation power at AC-3, 400 V	-
Degree of protection (IP), front side	IP20
Rated operation power at AC-23, 400 V	90
Rated short-time withstand current lcw	8
Version as emergency stop installation	no
Version as maintenance-/service switch	yes
Rated permanent current at AC-21, 400 V	160
Rated permanent current at AC-23, 400 V	160
Conditioned rated short-circuit current Iq	-
Suitable for distribution board installation	yes
Type of electrical connection of main circuit	Screw connection
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
