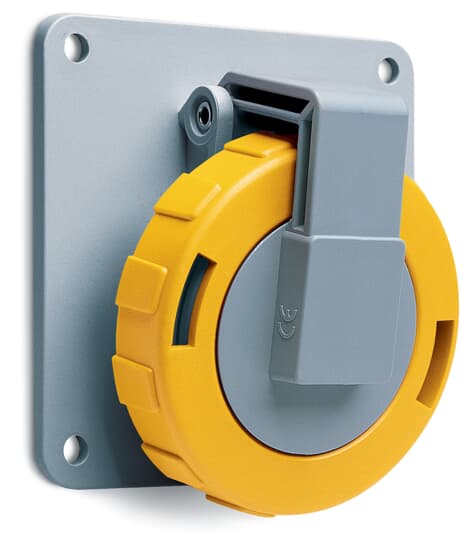

Ind. P&S 232RAU4W
ABB

Ind. P&S 232RAU4W

Panel mounted socket outlets- 32A, IP67 watertight thermoplastic (PA)
* Cable area 2.5 - 10mm?
* Type: 2P+E
* Terminals/Poles: 3
* Colour code: Yellow
* Voltage: 100-130 V
* Part Number: 232-RAU4

Product identifiers

SKU: 2CMA166946R1000

Categories

Panel Mounted Socket Outlets Wiring Accessories & Installation Sockets & Switches Plug Sockets

Specifications

Material Plastic
RAL-number 7001
IEC-amperage 32
Rated voltage
Military model no
Number of poles 3
Rated frequency
Contact material -
Connection system Screwed terminal
Flange size vertical 95
Flange size horizontal 95
Surface treatment contacts Untreated
Drill hole distance horizontal 79.5
Amperage according to UL/CSA (for UL-version) 32
