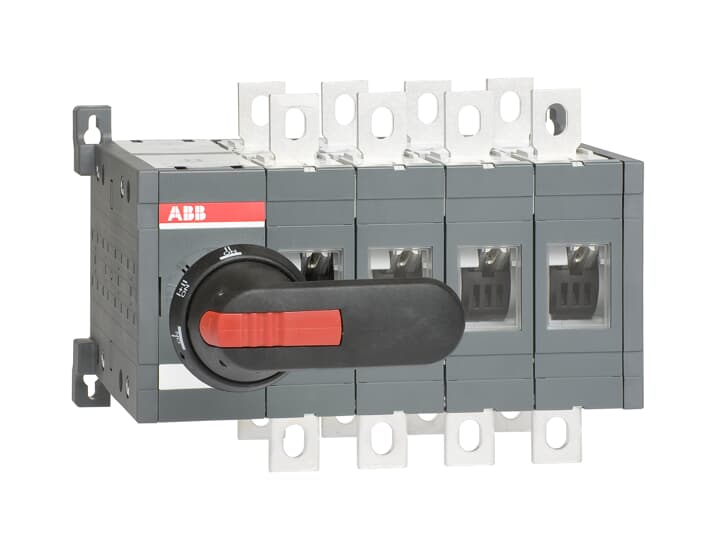

400A 4P Closed Transition Changeover Sw
400A 4P Closed Transition Changeover Sw
""Manual OTM160...2500 manual change-over switches, I - I+II - II -operation,closed transition
* Part number: OTM400E04CLP
* Including dual power source for the motor operator. Motor operator voltage Ue = 220-240v AC
* Including a handle for manual operation, PCB connectors, bolt kit with nut and washers for all terminals.
* Types OTM160...1600_C_D. including a voltage sensing kit on the bottom of the switch, available on request, please add the letter "B" to the type code.
* Types OTM160-1600E include a clamp for the handle and spare fuses.
* Types OTM160...250_WC_D_ are equipped with extended phase distance.""
* Part number: OTM400E04CLP
* Including dual power source for the motor operator. Motor operator voltage Ue = 220-240v AC
* Including a handle for manual operation, PCB connectors, bolt kit with nut and washers for all terminals.
* Types OTM160...1600_C_D. including a voltage sensing kit on the bottom of the switch, available on request, please add the letter "B" to the type code.
* Types OTM160-1600E include a clamp for the handle and spare fuses.
* Types OTM160...250_WC_D_ are equipped with extended phase distance.""
Product identifiers
SKU: 1SCA106405R1001
Specifications
| Depth | 203 |
| Width | 265 |
| Height | 185 |
| Interlockable | yes |
| Number of poles | 4 |
| Number of switches | 1 |
| Device construction | Built-in device plug-in technique |
| Motor drive optional | no |
Documents
Deeplink product page
Deeplink REACH
Reach AC Switches and Fusegear 2024-10-20 Annex.pdf
Instructions for use
34OT160-2500_C_rev N (1).pdf
Product data sheet
Declaration RoHS
RoHs Declaration AC Switches and Fusegear 2023-10-02.pdf
Declaration DOC CE (Declaration of conformity CE)
CE OT315-400_CL 2020-09-03 C.pdf
Declaration EPD (Environmental Product Declaration)
1SCC303086D0201_OT400E03C PEP Ecopassport_Rev2.pdf
