Frequency
Power loss	5.6
Voltage type	AC/DC
Rated current	16
Rated voltage	400
Built-in depth	69
Explosion-proof	no
Pollution degree	3
Over voltage category	3
Current limiting class	3
Release characteristic	Z
Number of poles (total)	2
Degree of protection (IP)	IP20
Number of protected poles	2
Flush-mounted installation	no
Rated insulation voltage Ui	440
Additional equipment possible	yes
Width in number of modular spacings	2.0
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	25
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	25
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	25
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	25

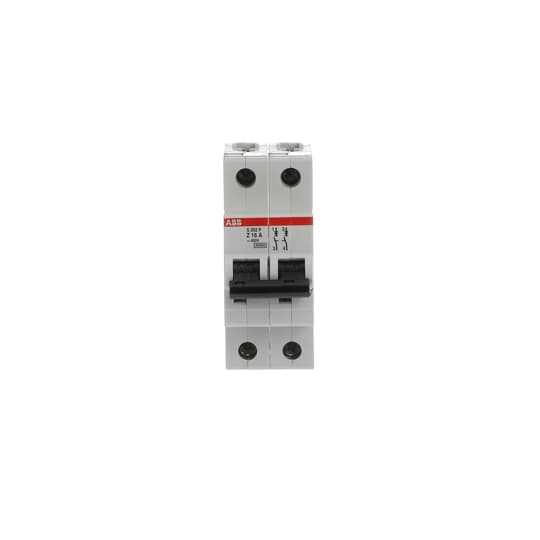

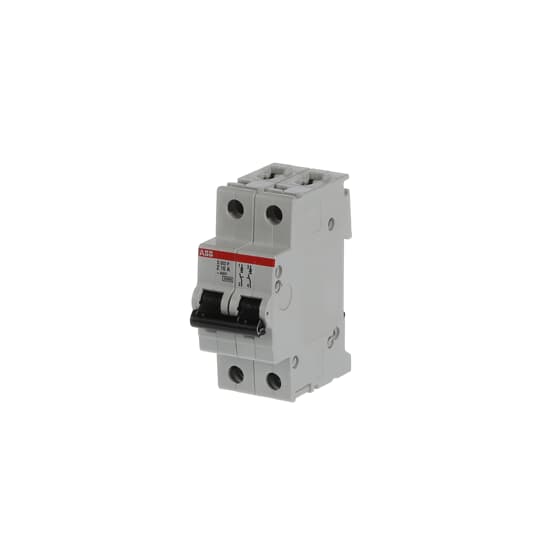

S202PZ16 DP MCB Z16A 25kA
