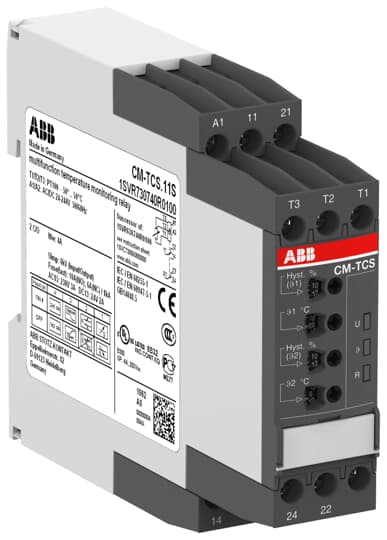

CM-TCS.11S Temp monitor relay -50.+50'C

Name: CM-TCS.11S Temp monitor relay -50.+50'C
Brand: ABB
SKU: 1SVR730740R0100

Type CM-TCS temperature monitor relay
* Easy connect technology
* Double-chamber cage connection terminals
* LEDs for status indication
* Integrated marker label
* Sealer transparent cover
* Snap-On housing

Product identifiers

SKU: 1SVR730740R0100

Specifications

Depth	103.7
Width	22.5
Height	85.6
Supply voltage DC
Operating voltage DC
Rated switch current	4
With detachable clamps	no
External reset possible	no
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Resistance measuring range
Error registration possible	no
Temperature measuring range
Type of electric connection	Screw connection
Number of measuring circuits	1
Voltage type (supply voltage)	AC/DC
Voltage type (operating voltage)	AC
Connection type auxiliary circuit	Other
Number of contacts as change-over contact	2
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0
