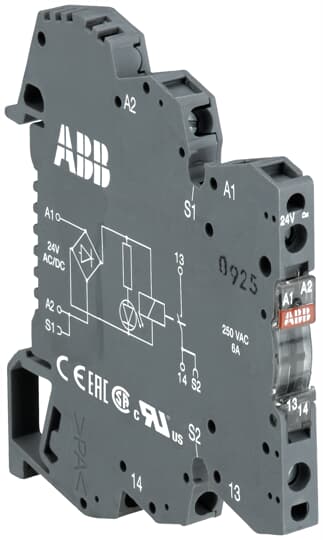

RB121-12VDC Interface relay R600

Name: RB121-12VDC Interface relay R600
Brand: ABB
SKU: 1SNA645073R0000

R600 interface relays
* Standard range in screw clamp or spring clamp versions
* Spacing : 6mm
* Wire size : 2.5mm? (4mm? solid wire)
* Contact type : 1 NO, 1 NC, 1 SPDT, 1 DPDT from 1mA to 8A/250V
* Transistor : 100mA, MOS : 1A to 5A, Triac : 1A to 2A

Product identifiers

SKU: 1SNA645073R0000

Specifications

Depth	70
Width	6
Height	67.5
Nominal current	6
Material contact	Silver tin oxide (AgSnO2)
Drive, polarization	Polarized
With LED indication	yes
Complete with socket	yes
Operating voltage DC
Max. starting current	-
Type of switch contact	Single contact
With detachable clamps	no
Degree of protection (IP)	IP20
Drive, switching attitude	Mono stable
Material of contact insert	-
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Voltage type for actuating	DC
Material of contact surface	Other
Type of electric connection	Screw connection
With forced-guided contacts	no
Rated control supply voltage DC
Voltage type (operating voltage)	AC/DC
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Number of contacts as change-over contact	1
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0
Relay technology category according to IEC 61810-7	RT I
