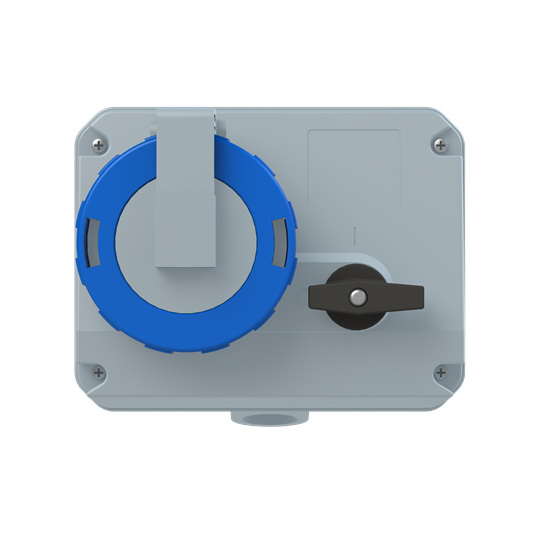

2P+E Sw Out, 32A, 250V, 6h, horiz. IP67
Switched interlocked sockets- 32A, IP67 watertight thermoplastic polyester (PBT)
* Cable entry with knock-outs O 25mm up/M25 down
* Cable area 2.5 - 10mm?
* Type: 2P+E
* Terminals/Poles: 3
* Colour code: Blue
* Voltage: 200-250 V
* Part Number: 232-MHS6W
* Cable entry with knock-outs O 25mm up/M25 down
* Cable area 2.5 - 10mm?
* Type: 2P+E
* Terminals/Poles: 3
* Colour code: Blue
* Voltage: 200-250 V
* Part Number: 232-MHS6W
Product identifiers
SKU: 2CMA167848R1000
Specifications
| Model | Surface mounted |
| Lockable | - |
| Material | Plastic |
| RAL-number | 7001 |
| Text field | - |
| Cable entry | - |
| IEC-amperage | 32 |
| Housing colour | - |
