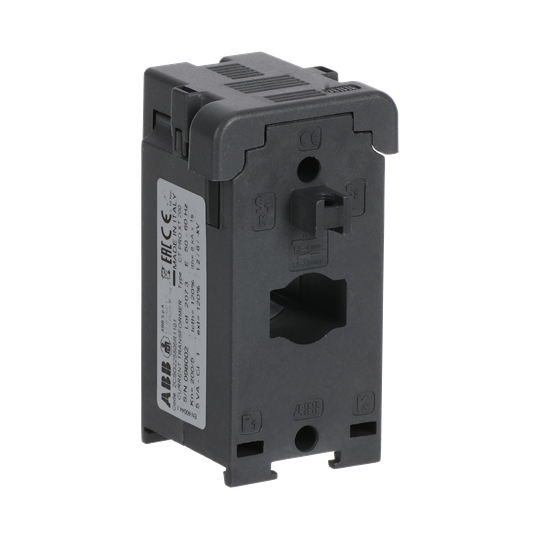

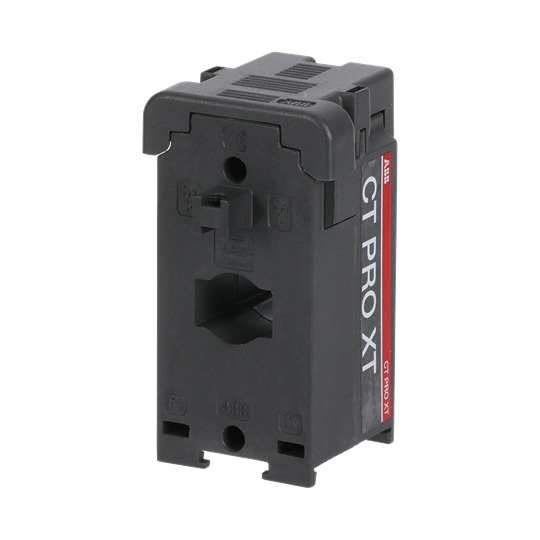

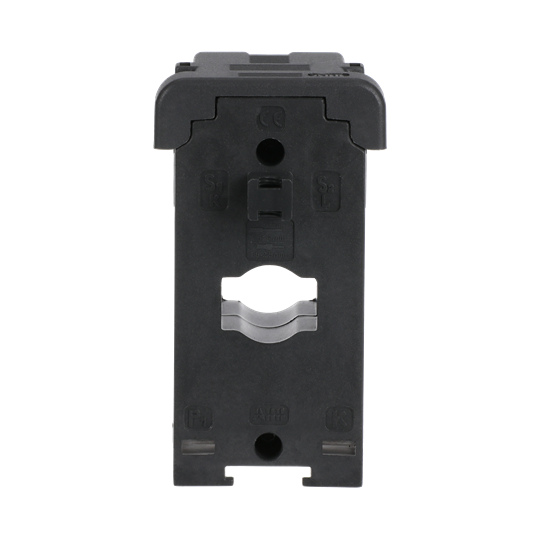

CT PRO XT 200
CT PRO XT ./5 A series, through primary
* Part number: CT PRO XT 200
* The CT PRO XT current transformers range is designed for distribution systems using cables up to 18 mm in diameter, and primary busbars with dimensions up to 20 x 10 mm. Order codes are available with primary rated current up to 400 A. CT PRO XT transformers are the ideal solution for distribution and sub-distribution switchboards downstream ABB modular circuit-breakers (SN201, S 200, S 280, S 800, DS 201, DS 202C, DS 941) or downstream of Tmax circuit-breakers (XT1, XT2, XT3, XT4 and T4320).
* Part number: CT PRO XT 200
* The CT PRO XT current transformers range is designed for distribution systems using cables up to 18 mm in diameter, and primary busbars with dimensions up to 20 x 10 mm. Order codes are available with primary rated current up to 400 A. CT PRO XT transformers are the ideal solution for distribution and sub-distribution switchboards downstream ABB modular circuit-breakers (SN201, S 200, S 280, S 800, DS 201, DS 202C, DS 941) or downstream of Tmax circuit-breakers (XT1, XT2, XT3, XT4 and T4320).
Product identifiers
SKU: 2CSG225805R1101
Specifications
| Model | Through-feed current converter |
| Calibrated | yes |
| Snap mounting | no |
| Width opening | |
| Accuracy class | 1 |
| Height opening | |
| Opening diameter | - |
| With copper rail | no |
