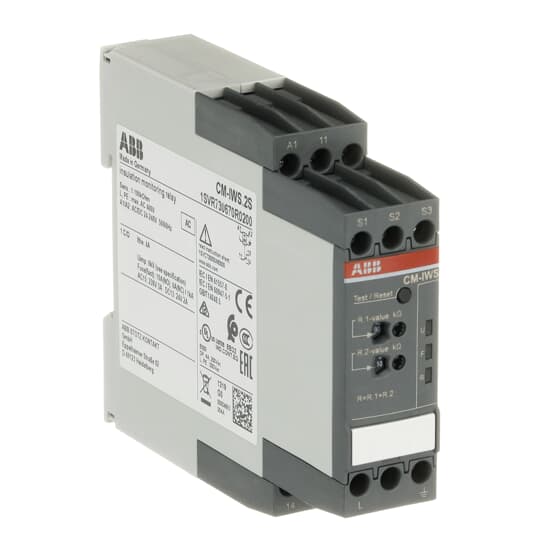

CM-IWS.2S Insulation monitoring relay

Name: CM-IWS.2S Insulation monitoring relay
Brand: ABB
SKU: 1SVR730670R0200

Type CM-IWS insulation monitoring relay
* Easy connect technology
* Double-chamber cage connection terminals
* LEDs for status indication
* Integrated marker label
* Sealer transparent cover
* Snap-On housing

Product identifiers

SKU: 1SVR730670R0200

Specifications

Depth	-
Width	-
Height	-
Function	For AC-current system
Line capacity	10
Supply voltage DC
Operating voltage DC
Rated switch current	3
With detachable clamps	no
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
Voltage measuring range
Rated operating frequency
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Response value impedance 1
Response value impedance 2
Error registration possible	-
Type of electric connection	Screw connection
Voltage type (supply voltage)	AC/DC
External power supply required	yes
Indication of insulation value	-
Voltage type (operating voltage)	AC
Number of contacts as change-over contact	-
Number of contacts as normally open contact	-
Number of contacts as normally closed contact	-
