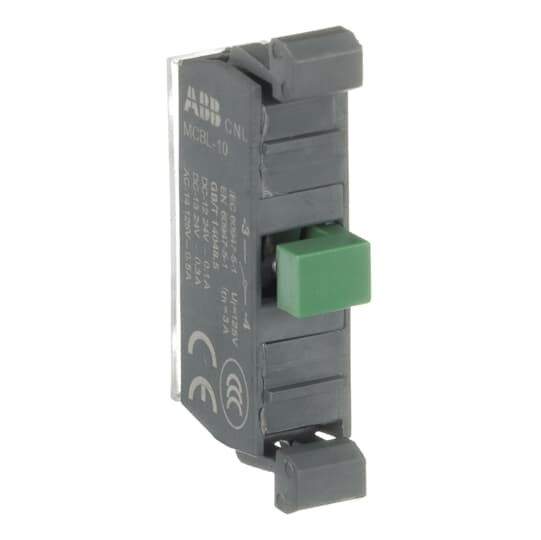

MCBL-10 CONTACT BLOCK
Specifications
| Model | - |
| Lamp holder | None |
| Mounting method | Front fastening |
| Type of electric connection | Screw connection |
| Number of fault-signal switches | - |
| Number of contacts as change-over contact | 0 |
| Rated operation current Ie at AC-15, 230 V | - |
| Number of contacts as normally open contact | 1 |
Documents
Deeplink product page
Deeplink REACH
2CMT2022-006479_RevC.pdf
Dimensioned drawing
2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf
Instructions for use
1SFC151011M0201_arbgcsdadeelenesetfifrhrhuitltlvnlplptroskslsvzh_H_Safety instructions & Installation instructions - Pilot Devices.pdf
Product data sheet
Declaration RoHS
2CMT2022-006498_Pilot Devices_revB.pdf
Declaration DOC CE (Declaration of conformity CE)
2CMT2015-005452_revJ.pdf
