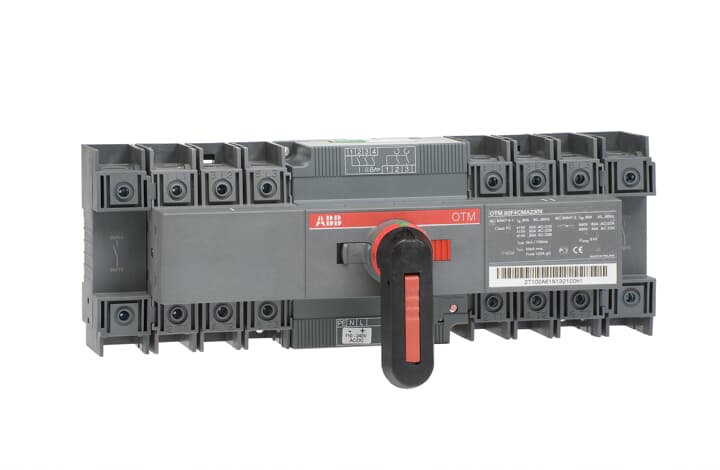

80A 4P Motorised Changeover Switch 230V
Motorised OTM40...125_C change-over switches, motor operation, I-O-II operation, open transition
* Part number: OTM80F4CMA230V
* Including handle for manual operation, a handle storage clip and male connectors for control circuits.
* Cable cross section for OTM40 is 2.5...25mm? or 2 x 2.5...16mm? and for OTM63...125 is 10...70mm?
* Part number: OTM80F4CMA230V
* Including handle for manual operation, a handle storage clip and male connectors for control circuits.
* Cable cross section for OTM40 is 2.5...25mm? or 2 x 2.5...16mm? and for OTM63...125 is 10...70mm?
Product identifiers
SKU: 1SCA120100R1001
Specifications
| Depth | 116 |
| Width | 283 |
| Height | 100 |
| Interlockable | yes |
| Number of poles | 4 |
| Number of switches | 1 |
| Device construction | Built-in device plug-in technique |
| Motor drive optional | no |
