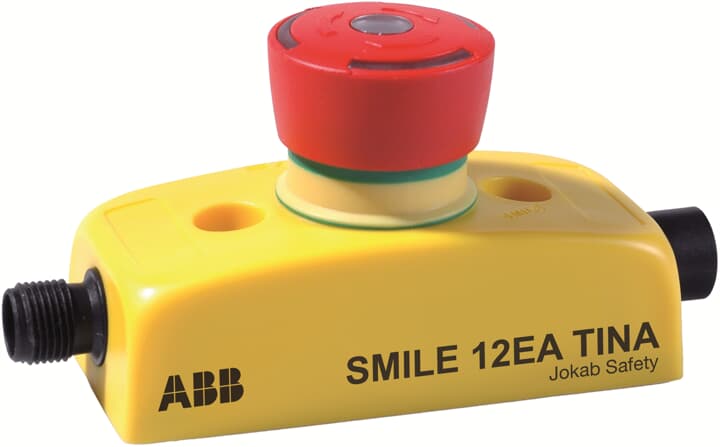

Smile 12 EA Tina Type ABB
Smile 12 EA Tina Type ABB
Smile Tina emergency stop with LED
* Part number: 30-050-02
* Two five pole M12 connectors, one at each end of the unit for connecting the Jokab safety cable
* Emergency push button up to cat. 4/PL e acc. to EN ISO 13849-1
* Light grids, emergency stop and Eden in the same safety loop together with Vital or Pluto gives cat. 4/PL e acc. to EN ISO 13849-1
* With LED indication on push button
* Available as safety stop (black pushbutton)
* Robust
* Info-signal from each emergency stop
* Part number: 30-050-02
* Two five pole M12 connectors, one at each end of the unit for connecting the Jokab safety cable
* Emergency push button up to cat. 4/PL e acc. to EN ISO 13849-1
* Light grids, emergency stop and Eden in the same safety loop together with Vital or Pluto gives cat. 4/PL e acc. to EN ISO 13849-1
* With LED indication on push button
* Available as safety stop (black pushbutton)
* Robust
* Info-signal from each emergency stop
Product identifiers
SKU: 2TLA030050R0200
Specifications
| Diameter cap | - |
| Hole diameter | - |
| With lighting | no |
| Mounting method | Surface mounting |
| Unlocking method | Other |
| Supply voltage lamp | - |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 1 |
Documents
Deeplink product page
Deeplink REACH
2CMT2022-006480.pdf
Dimensioned drawing
2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf
Instructions for use
Smile_Tina_Manual_(English)_ABB_rev-D-150206.pdf
Product data sheet
Declaration RoHS
2CMT2022-006499_Safety Products_revB.pdf
Declaration DOC CE (Declaration of conformity CE)
Declaration_of conformity_Smile_Tina_INCA_Tina_(EN)_2022_2TLC172016D0201_revB.pdf
