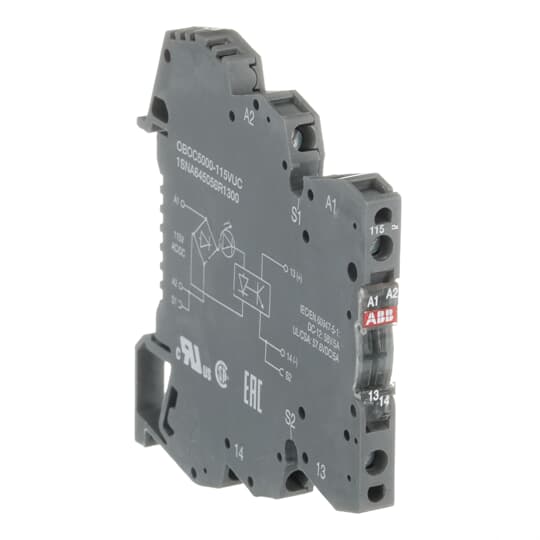

OBOC5000 115VAC/DC 5A/DC Opto
OBOC5000 115VAC/DC 5A/DC Opto
R600 optocouplers
* Standard range in screw clamp or spring clamp versions
* Spacing : 6mm
* Wire size : 2.5mm? (4mm? solid wire)
* Contact type : 1 NO, 1 NC, 1 SPDT, 1 DPDT from 1mA to 8A/250V
* Transistor : 100mA, MOS : 1A to 5A, Triac : 1A to 2A
* Standard range in screw clamp or spring clamp versions
* Spacing : 6mm
* Wire size : 2.5mm? (4mm? solid wire)
* Contact type : 1 NO, 1 NC, 1 SPDT, 1 DPDT from 1mA to 8A/250V
* Transistor : 100mA, MOS : 1A to 5A, Triac : 1A to 2A
Product identifiers
SKU: 1SNA645058R1300
Specifications
| Input voltage | |
| Output voltage | |
| With LED indication | yes |
| Type of digital output | Other |
| Type of output voltage | DC |
| Rated operation current Ie | 5 |
| Type of voltage (input voltage) | AC/DC |
Documents
Deeplink product page
Deeplink REACH
1SVD981001-4501_final.pdf
Dimensioned drawing
2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf
Instructions for use
1SVC645000M9000_E.pdf
Product data sheet
Declaration RoHS
1SVD981001-4401_ROHS_Electronic Relays and Controls_revA.pdf
Declaration DOC CE (Declaration of conformity CE)
1SVD982016-0002.pdf
