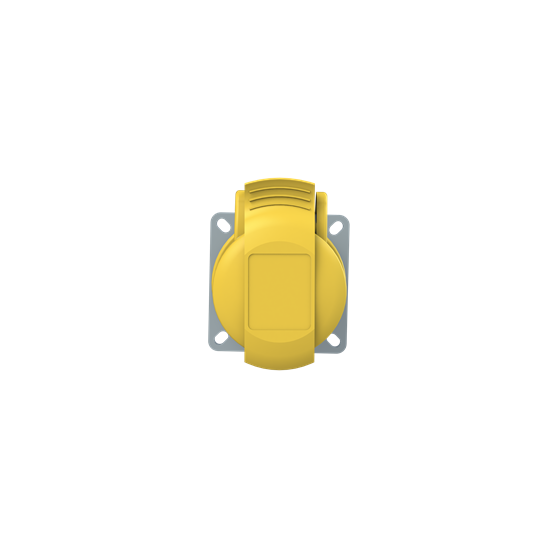

Yel 2P+E panel socket,16A 62x62mm flange

Name: Yel 2P+E panel socket,16A 62x62mm flange
Brand: ABB
SKU: 2CMA193145R1000

Product identifiers

SKU: 2CMA193145R1000

Specifications

Material	Plastic
RAL-number	7001
IEC-amperage	16
Rated voltage
Military model	no
Number of poles	3
Rated frequency
Contact material	CuZn
Insert direction	Straight
Connection system	Screwed terminal
Clock hour position	4
Flange size vertical	56
Identification colour	Yellow
Flange size horizontal	56
Degree of protection (IP)	IP44
Surface treatment contacts	Untreated
Drill hole distance vertical	46
Drill hole distance horizontal	46
Voltage according to EN 60309-2	110 V (50+60 Hz) yellow
Amperage according to UL/CSA (for UL-version)	16
