Ind. P&S 332RAU6W
ABB

Ind. P&S 332RAU6W

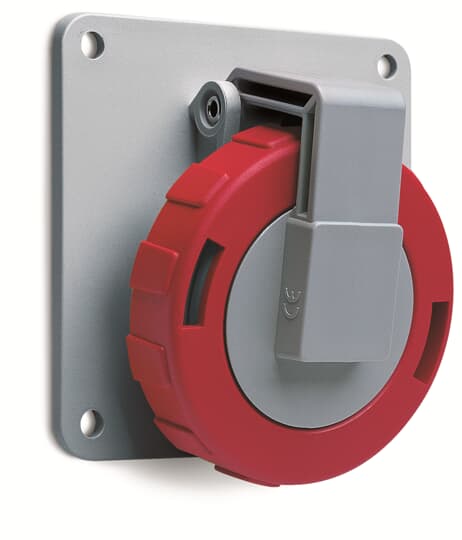

Panel mounted socket outlets- 32A, IP67 watertight thermoplastic (PA)
* Cable area 2.5 - 10mm?
* Type: 3P+E
* Terminals/Poles: 4
* Colour code: Red
* Voltage: 380-415 V
* Part Number: 332-RAU6

Product identifiers

SKU: 2CMA166964R1000

Categories

Panel Mounted Socket Outlets Wiring Accessories & Installation Sockets & Switches Plug Sockets

Specifications

Material Plastic
RAL-number 7001
IEC-amperage 32
Rated voltage
Military model no
Number of poles 4
Rated frequency
Contact material CuZn
Connection system Screwed terminal
Flange size vertical 95
Flange size horizontal 95
Surface treatment contacts Untreated
Drill hole distance horizontal 79.5
Amperage according to UL/CSA (for UL-version) 32

Documents

Deeplink product page
Instructions for use
Product data sheet
