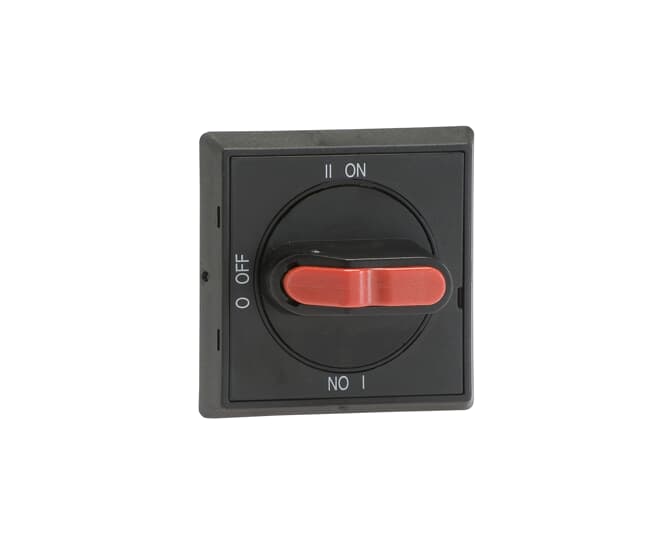

BLACK SELECTOR HANDLE
BLACK SELECTOR HANDLE
External handles
* Selector handle IP65, Nema type 1, 3R, 12 indication I-O-II.
* Padlockable in O-position with maximum of three padlocks with bail diameter 5...8mm (two lower holes) and 5...6.3mm (the upper hole).
* Door interlocked in I- and II-position and when padlocked in the O-position.
* Selector handle IP65, Nema type 1, 3R, 12 indication I-O-II.
* Padlockable in O-position with maximum of three padlocks with bail diameter 5...8mm (two lower holes) and 5...6.3mm (the upper hole).
* Door interlocked in I- and II-position and when padlocked in the O-position.
Product identifiers
SKU: OHBS2AJE011
Specifications
| Colour | Black |
| With key lock | - |
| Padlock locking | - |
| With extension shaft | no |
| With restart blockage | - |
| Degree of protection (NEMA) | - |
| Suitable for emergency stop | no |
| Suitable for switch disconnector | yes |
Documents
Deeplink product page
Deeplink REACH
Reach AC Switches and Fusegear 2024-10-20 Annex.pdf
Instructions for use
1SCC390008M0018_en_V_Handles OH45-275E1 (pistol handles).pdf
Product data sheet
Declaration RoHS
RoHs Declaration AC Switches and Fusegear 2023-10-02.pdf
Declaration DOC CE (Declaration of conformity CE)
CE OH_ 2020.10.19 E.pdf
