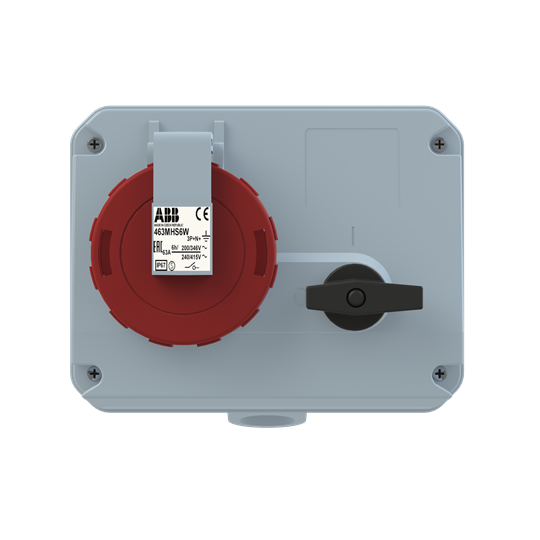

Ind. P&S 463MHS6W
Switched interlocked sockets- 63A, IP67 watertight thermoplastic polyester (PBT)
* Cable entry with knock-outs 2xO 32mm.
* Cable area 6 - 25mm?
* Type: 3P+N+E
* Terminals/Poles: 5
* Colour code: Red
* Voltage: 380-415 V
* Part Number: 463-MHS6W
* Cable entry with knock-outs 2xO 32mm.
* Cable area 6 - 25mm?
* Type: 3P+N+E
* Terminals/Poles: 5
* Colour code: Red
* Voltage: 380-415 V
* Part Number: 463-MHS6W
Product identifiers
SKU: 2CMA167905R1000
Categories
Features
|
Model
|
Base unit and cover
|
|
Switch
|
Mechanical locking
|
|
Power loss
|
-
|
|
Protection
|
-
|
|
IEC-amperage
|
63
|
|
Military model
|
-
|
|
Type of switch
|
None
|
|
Number of poles
|
5
|
|
Contact material
|
-
|
|
Housing material
|
Plastic
|
|
Clock hour position
|
6
|
|
Identification colour
|
Red
|
|
Degree of protection (IP)
|
IP67
|
|
With earth leakage switch
|
-
|
|
Surface treatment contacts
|
Untreated
|
|
Voltage according to EN 60309-2
|
400-440 V (50+60 Hz) red
|
|
Empty locations on mounting rail
|
-
|
|
Amperage according to UL/CSA (for UL-version)
|
-
|
