Depth	70
Width	76.2
Height	130
Interlockable	yes
Number of poles	3
Number of switches	-
Device construction	Built-in device fixed built-in technique
Motor drive optional	yes
Colour control element	White
Motor drive integrated	no
Version as main switch	yes
Rated operating voltage
Type of control element	-
Switching power at 400 V	-
Version as safety switch	no
Voltage release optional	no
Rated permanent current Iu	160
With pre-assembled cabling	-
Degree of protection (NEMA)	-
Suitable for floor mounting	no
Version as reversing switch	no
Max. rated operation voltage Ue AC	690
Suitable for front mounting 4-hole	no
Suitable for front mounting centre	no
Suitable for intermediate mounting	no
Width in number of modular spacings	-
Rated operation power at AC-3, 400 V	-
Degree of protection (IP), front side	IP20
Rated operation power at AC-23, 400 V	-
Rated short-time withstand current lcw	2
Version as emergency stop installation	no
Version as maintenance-/service switch	no
Rated permanent current at AC-21, 400 V	160
Rated permanent current at AC-23, 400 V	-
Conditioned rated short-circuit current Iq	-
Suitable for distribution board installation	yes
Type of electrical connection of main circuit	Bolt connection
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0

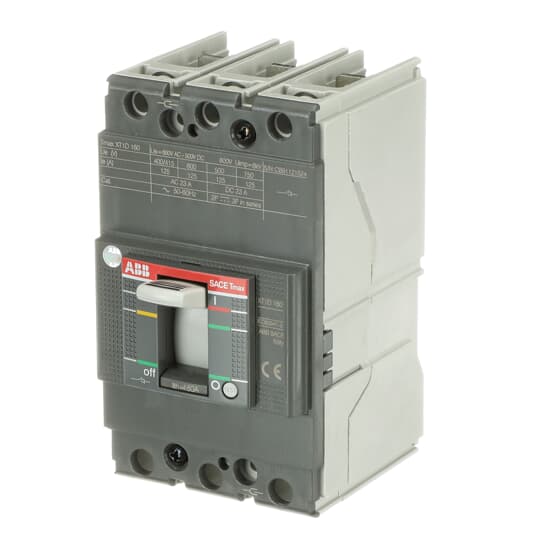

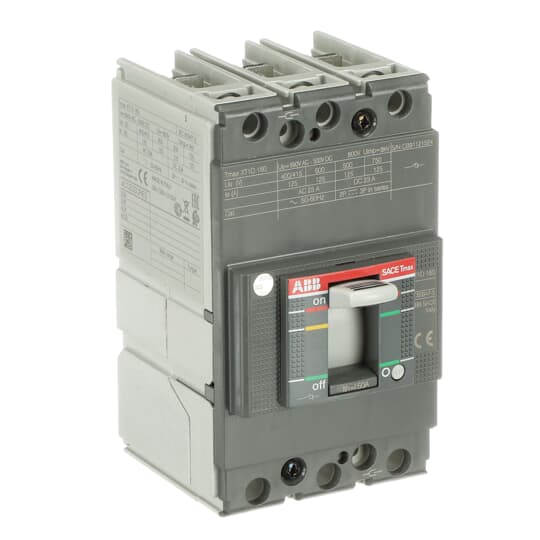

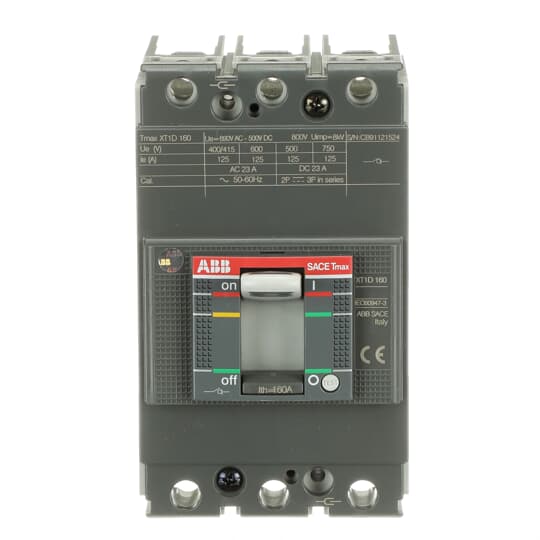

XT1D 160 3p F F
