Output power	3680
Rated current	20
Bus system KNX	yes
Bus system LON	no
Mounting method	DRA (DIN-rail adapter)
Other bus systems	None
Power consumption	-
Bus system Powernet	no
Suitable for C-load	-
With LED indication	yes
With bus connection	yes
Max. switching power	3680
Bus module detachable	no
Modular expandability	-
Max. switching current	20
Rated operating voltage
Max. switching power LED	-
Number of digital inputs	-
Degree of protection (IP)	IP20
Bus system radio frequency	no
Different phases connectable	-
Radio frequency bidirectional	-
Local operation/hand operation	-
Max. number of switching contacts	4
Bus system KNX-RF (Radio Frequency)	no
Width in number of modular spacings	4.0
Min. depth of built-in installation box	-

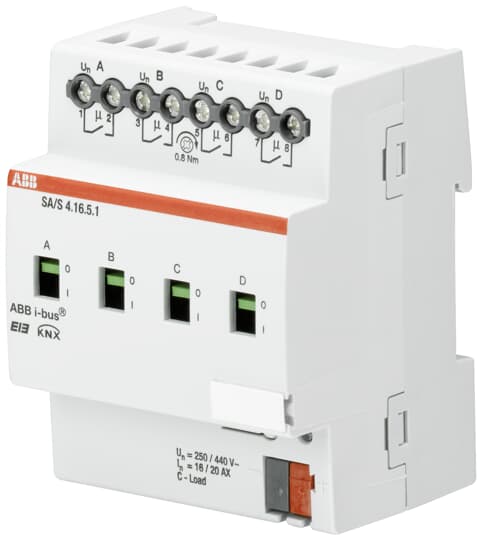

SA/S4.16.5.1 Switch Act, 4F 16/20 C-Load
