Depth	65
Model	-
Width	70
Height	26.5
Approval	Measuring Instruments Directive
Frequency
Pole type	Single phase
Calibrated	yes
Pulse rate
Pulse type	S0
Energy type	-
Tariff type	One-tariff
Pulse output	Electrical
Suitable for	-
Type of meter	Electronic
Accuracy class	B
Tariff control	-
With lock code	no
EEC40 signature	no
Mounting method	DRA (DIN-rail adapter)
Power consumption	0.807
Type of interface	M-bus (wired)
Type of indication	Digital
Max. current (Imax)	80
Escapement mechanism	yes
Nominal current (In)	80
Nominal voltage (Un) L-L
Nominal voltage (Un) N-L
Degree of protection (IP)	IP20
Degree of protection (NEMA)	-
Measurement type load profile	no
Number of positions total (counter)	7
Width in number of modular spacings	4

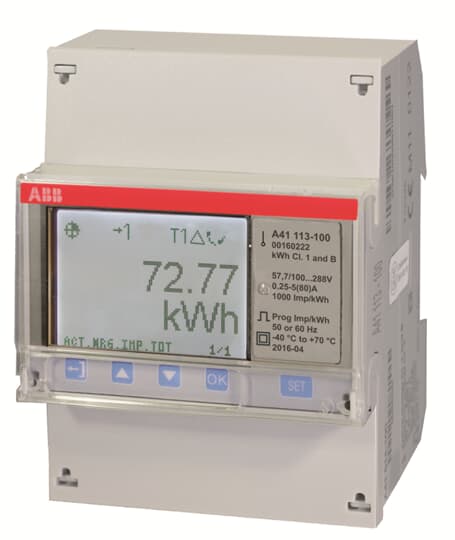

A41 113-100 DIRECT CONN 1 PHASE METER
