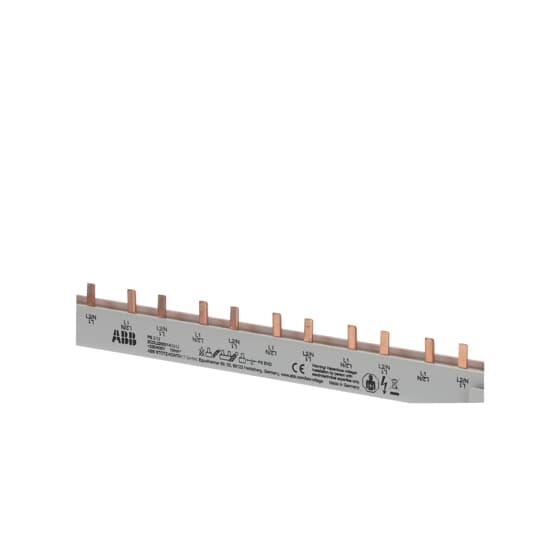

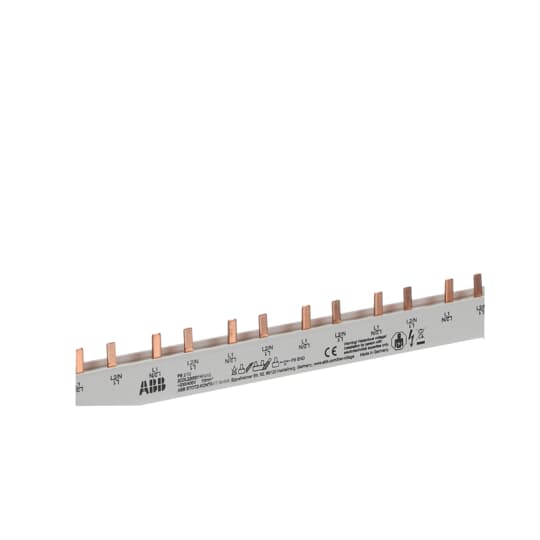

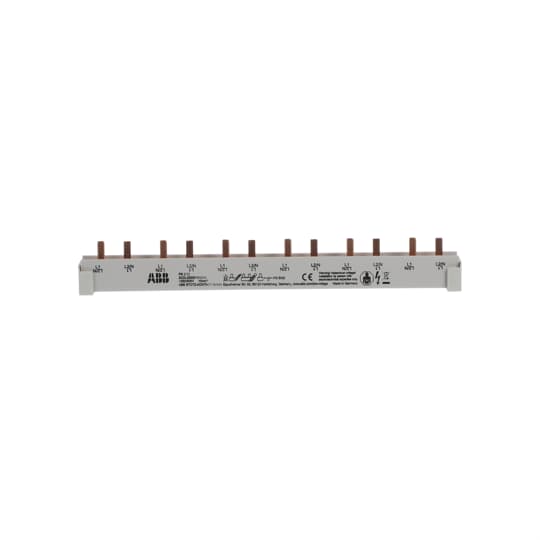

PS2/12 COMPACT B/BAR DP 10MM & 12MOD

2-phase busbars, pin distance 17.6 mm, end caps PS-END
* Part number: PS2/12
* Inclusive of end caps

Product identifiers

SKU: 2CDL220001R1012

Specifications

Colour Grey
Length 214
Insulated yes
Module width 44729.0
Cross section 10
Number of poles 12
Number of phases 2
Can be cut to size -
Rated permanent current Iu 63
Suitable for number of devices 6
Width in number of modular spacings 12.0
Rated short-time withstand current lcw 25
Suitable for devices with auxiliary switch no

Documents

Deeplink product page

Open

Deeplink REACH

9AKK107492A1906.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK108468A1264_Busbars and accessories.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

2CDK446006D0401_EU_PS_PSH_SZ-PSB_SZ-KS.pdf

Open
