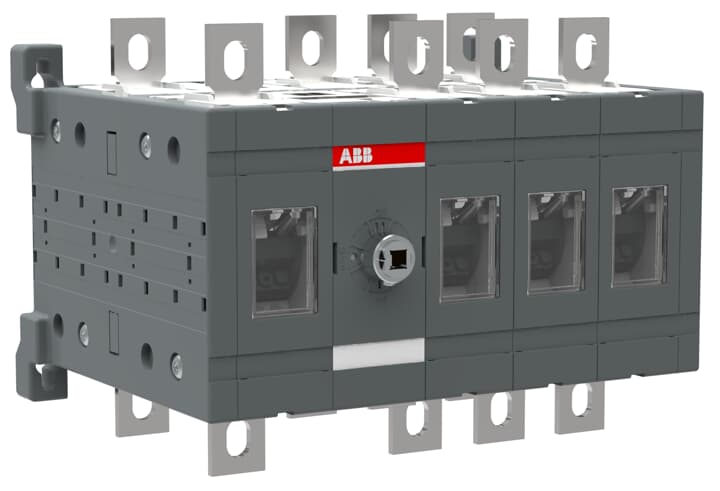

250A 4P C/O sw mech mdl E13 w/o h+s

Name: 250A 4P C/O sw mech mdl E13 w/o h+s
Brand: ABB
SKU: OT250E13C

Product identifiers

SKU: OT250E13C

Specifications

Depth	160
Width	205
Height	150
Interlockable	yes
Number of poles	4
Number of switches	1
Device construction	Built-in device plug-in technique
Motor drive optional	no
Colour control element	Black
Motor drive integrated	no
Version as main switch	yes
Rated operating voltage
Type of control element	Other
Switching power at 400 V	140
Version as safety switch	no
Voltage release optional	no
Rated permanent current Iu	-
With pre-assembled cabling	-
Degree of protection (NEMA)	1
Suitable for floor mounting	no
Version as reversing switch	no
Max. rated operation voltage Ue AC	1000
Suitable for front mounting 4-hole	yes
Suitable for front mounting centre	no
Suitable for intermediate mounting	no
Width in number of modular spacings	-
Rated operation power at AC-3, 400 V	-
Degree of protection (IP), front side	IP20
Rated operation power at AC-23, 400 V	140
Rated short-time withstand current lcw	8
Version as emergency stop installation	no
Version as maintenance-/service switch	yes
Rated permanent current at AC-21, 400 V	250
Rated permanent current at AC-23, 400 V	250
Conditioned rated short-circuit current Iq	-
Suitable for distribution board installation	yes
Type of electrical connection of main circuit	Screw connection
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
