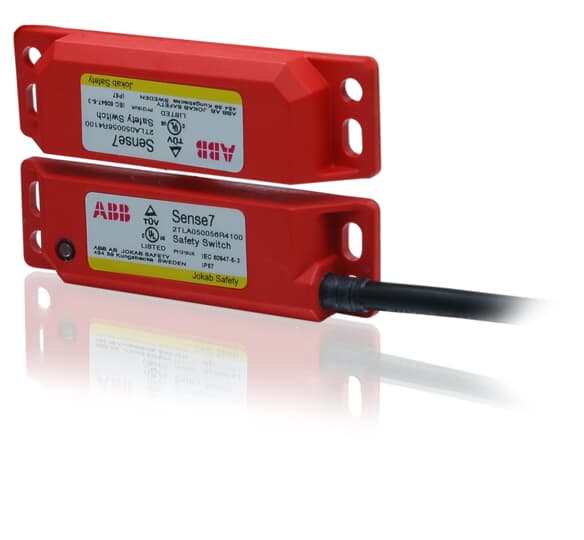

Sense7 10m Cable, 2NC/1NO LED

Name: Sense7 10m Cable, 2NC/1NO LED
Brand: ABB
SKU: 2TLA050056R6100

Sense7 non-contact switch
* Plastic - UL approved polyester
* Small size
* Up to IP69K
* LED
* 2NC + 2NO
* Solid state outputs

Product identifiers

SKU: 2TLA050056R6100

Specifications

Voltage type	DC
Width sensor	50
Coating housing	Other
Diameter sensor	-
Height of sensor	88
Housing material	Other
Length of sensor	13
Type of actuation	Magnet
Switching distance	5
Ambient temperature
Min. output current	10
With status indication	yes
Rated supply voltage DC
Type of switching output	PNP
Construction type housing	Special construction
Degree of protection (IP)	IP67
SIL according to IEC 61508	3
Degree of protection (NEMA)	-
Type of electric connection	Cable
Protected switch distance ON	8
Protected switch distance OFF	20
Rated supply voltage AC 50 Hz
Rated supply voltage AC 60 Hz
Suitable for safety functions	yes
Explosion safety category for gas	None
Explosion safety category for dust	None
Max. output current at protected output	0.2
Mechanical mounting condition for sensor	Not flat
Number of protected semiconductor outputs	2
Type of interface for safety communication	Other
Cross-/short circuit identification possible	yes
Number of protected contact energized outputs	-
Performance level according to EN ISO 13849-1	Level e
With monitoring function downstream switching devices	no
Number of semiconductor outputs with signalling function	1
Number of contact energized outputs with signalling function	-
