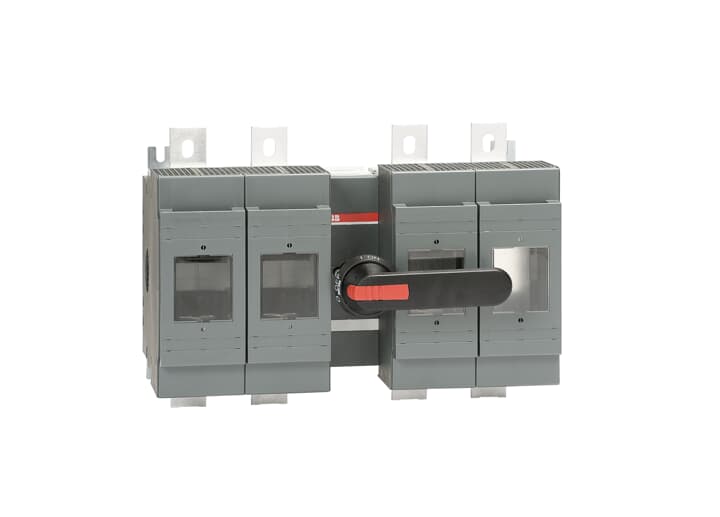

800A 4P DIN Switch fuse mech mdl
OS200...1250 DIN Front Operated Switch Fuses - Mechanism between the poles
* Part number: OS800D22N2P
* Including terminal bolt kit, a black ON-OFF plastic handle and shaft as standard. The handle is IP65 protected, padlockable in the OFF-position and with door interlock in the ON-position.The shaft is adjustable for a range of installation depths. OS1250DA: a fuse replacement tool is integrated in the fuse cover.
* Part number: OS800D22N2P
* Including terminal bolt kit, a black ON-OFF plastic handle and shaft as standard. The handle is IP65 protected, padlockable in the OFF-position and with door interlock in the ON-position.The shaft is adjustable for a range of installation depths. OS1250DA: a fuse replacement tool is integrated in the fuse cover.
Product identifiers
SKU: 1SCA022825R5510
Specifications
| Cable entry | Other |
| Number of poles | 4 |
| Suitable for fuses | NH3 |
| Motor drive optional | no |
| With error protection | - |
| Motor drive integrated | no |
| Version as main switch | yes |
| Type of control element | Long turning handle |
