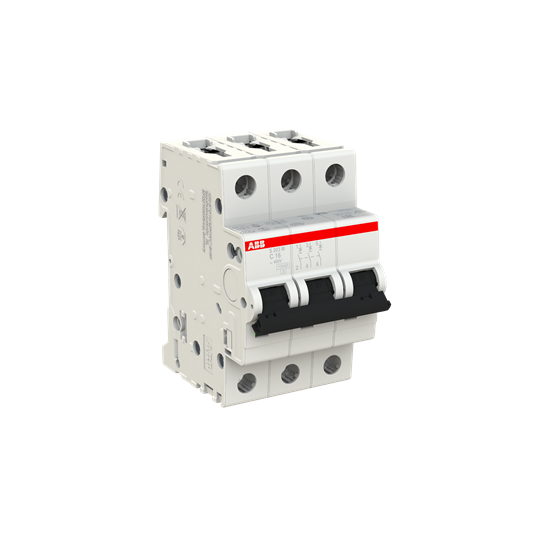

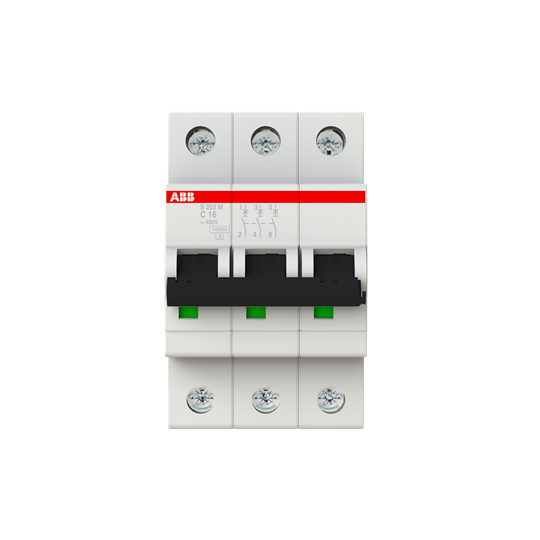

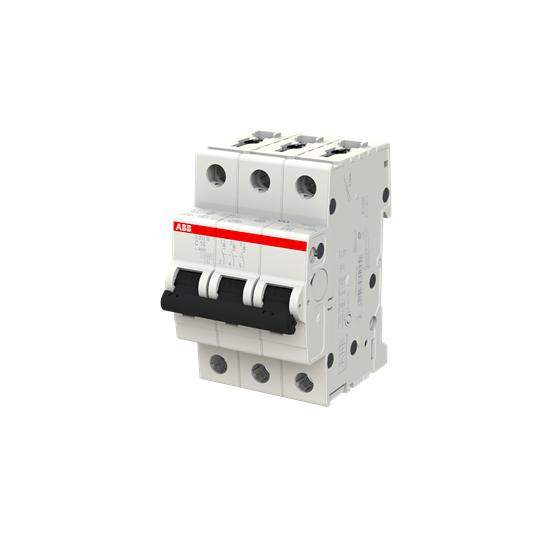

S203MC16 TP MCB C16A 10kA

Name: S203MC16 TP MCB C16A 10kA
Brand: ABB
SKU: 2CDS273001R0164

S200 Series Type C - MCBs - 10kA 3P
* Part number: S203MC16
* Type C - Suitable for moderate switching surges for sort duration eg. discharge lamps.

Product identifiers

SKU: 2CDS273001R0164

Specifications

Frequency
Power loss	7.5
Voltage type	AC/DC
Rated current	16
Rated voltage	400
Built-in depth	69
Explosion-proof	no
Pollution degree	3
Over voltage category	3
Current limiting class	3
Release characteristic	C
Number of poles (total)	3
Degree of protection (IP)	IP20
Number of protected poles	3
Flush-mounted installation	no
Rated insulation voltage Ui	440
Additional equipment possible	yes
Width in number of modular spacings	3.0
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	25
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	15
