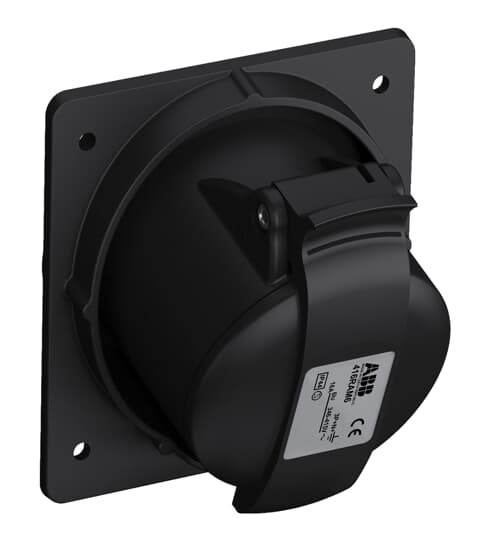

416RAM6B Panel socket black range
Socket outlet- 16A, IP44 splash proof plastic enclosure (PA)
* Cable entry with compression gland.
* Cable area 1 - 2.5mm?
* Type: 3P+N+E
* Terminals/Poles: 5
* Colour code: Black
* Voltage: 346-415 V
* Part Number: 416-RAM6B
* Cable entry with compression gland.
* Cable area 1 - 2.5mm?
* Type: 3P+N+E
* Terminals/Poles: 5
* Colour code: Black
* Voltage: 346-415 V
* Part Number: 416-RAM6B
Product identifiers
SKU: 2CMA100545R1000
Categories
Features
|
Material
|
Plastic
|
|
RAL-number
|
9005
|
|
IEC-amperage
|
16
|
|
Rated voltage
|
|
|
Military model
|
no
|
|
Number of poles
|
5
|
|
Rated frequency
|
|
|
Contact material
|
-
|
|
Insert direction
|
Angled
|
|
Connection system
|
Screwed terminal
|
|
Clock hour position
|
6
|
|
Flange size vertical
|
89
|
|
Identification colour
|
Red
|
|
Flange size horizontal
|
93
|
|
Degree of protection (IP)
|
IP44
|
|
Surface treatment contacts
|
Untreated
|
|
Drill hole distance vertical
|
66
|
|
Drill hole distance horizontal
|
66
|
|
Voltage according to EN 60309-2
|
400-440 V (50+60 Hz) red
|
|
Amperage according to UL/CSA (for UL-version)
|
16
|
