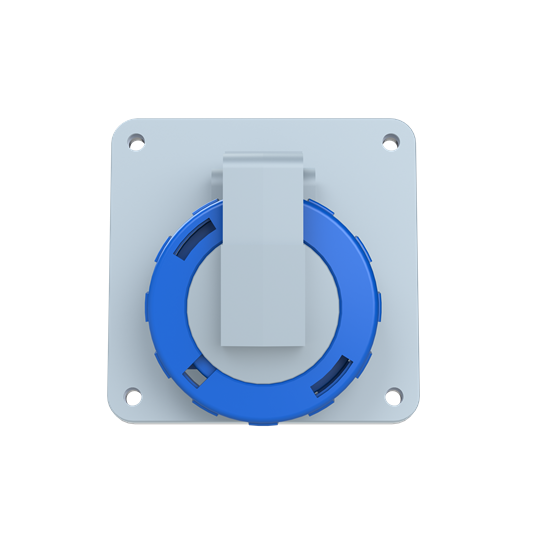

216RAU6W socket 2P+E 200-250V 16A IP67
ABB

216RAU6W socket 2P+E 200-250V 16A IP67

Panel mounted socket outlets- 16A, IP67 watertight thermoplastic (PA)
* Cable area 1.5 - 4mm?
* Type: 2P+E
* Terminals/Poles: 3
* Colour code: Blue
* Voltage: 200-250 V
* Part Number: 216-RAU6W

Product identifiers

SKU: 2CMA166996R1000

Categories

Panel Mounted Socket Outlets Wiring Accessories & Installation Sockets & Switches Outdoor Sockets

Specifications

Material Plastic
RAL-number 7001
IEC-amperage 16
Rated voltage
Military model no
Number of poles 3
Rated frequency
Contact material -
Connection system Screwed terminal
Flange size vertical 95
Flange size horizontal 95
Surface treatment contacts Untreated
Drill hole distance horizontal 79.5
Amperage according to UL/CSA (for UL-version) 16

Documents

Deeplink product page
Deeplink REACH
Instructions for use
Product data sheet
