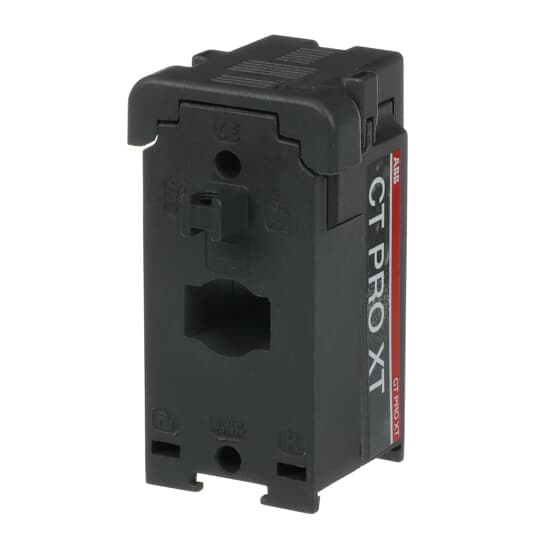

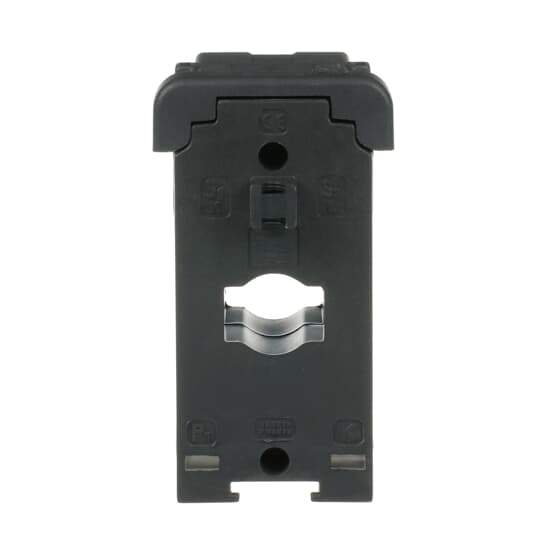

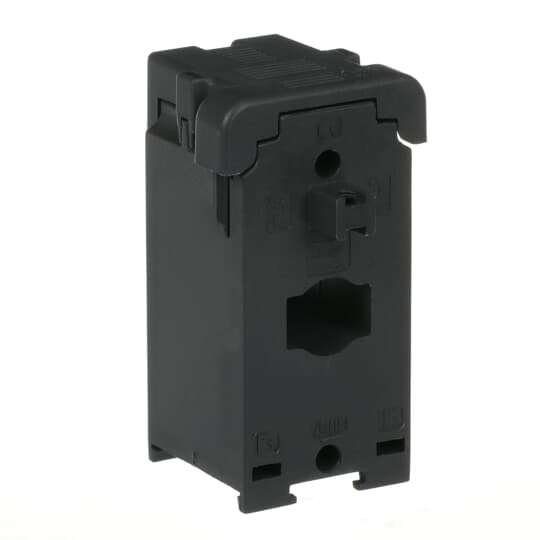

CT PRO XT 50
1 / 3
CT PRO XT 50
CT PRO XT ./5 A series, through primary
* Part number: CT PRO XT 50
* The CT PRO XT current transformers range is designed for distribution systems using cables up to 18 mm in diameter, and primary busbars with dimensions up to 20 x 10 mm. Order codes are available with primary rated current up to 400 A. CT PRO XT transformers are the ideal solution for distribution and sub-distribution switchboards downstream ABB modular circuit-breakers (SN201, S 200, S 280, S 800, DS 201, DS 202C, DS 941) or downstream of Tmax circuit-breakers (XT1, XT2, XT3, XT4 and T4320).
* Part number: CT PRO XT 50
* The CT PRO XT current transformers range is designed for distribution systems using cables up to 18 mm in diameter, and primary busbars with dimensions up to 20 x 10 mm. Order codes are available with primary rated current up to 400 A. CT PRO XT transformers are the ideal solution for distribution and sub-distribution switchboards downstream ABB modular circuit-breakers (SN201, S 200, S 280, S 800, DS 201, DS 202C, DS 941) or downstream of Tmax circuit-breakers (XT1, XT2, XT3, XT4 and T4320).
Product identifiers
SKU: 2CSG225755R1101
Specifications
| Model | Through-feed current converter |
| Calibrated | yes |
| Snap mounting | no |
| Width opening | |
| Accuracy class | 3 |
| Height opening | |
| Opening diameter | - |
| With copper rail | no |
Documents
Deeplink product page
Deeplink REACH
9AKK108467A9482_en_F_Reach Declaration - ABB S.p.A. Vittuone.pdf
Instructions for use
Product data sheet
Declaration RoHS
ROHS 2CSC445004K2701.pdf
Declaration DOC CE (Declaration of conformity CE)
2CSC445003D2704 - EU DoC - CT PRO XT-CT MAX.pdf
