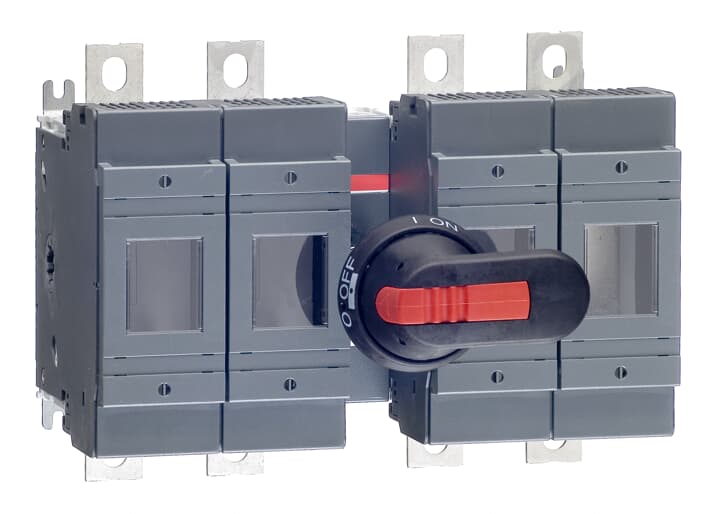

250A 4P DIN FUSE SWITCH MECH
250A 4P DIN FUSE SWITCH MECH
OS200...1250 DIN Front Operated Switch Fuses - Mechanism between the poles
* Part number: OS250D22N2P
* Including terminal bolt kit, a black ON-OFF plastic handle and shaft as standard. The handle is IP65 protected, padlockable in the OFF-position and with door interlock in the ON-position.The shaft is adjustable for a range of installation depths. OS1250DA: a fuse replacement tool is integrated in the fuse cover.
* Part number: OS250D22N2P
* Including terminal bolt kit, a black ON-OFF plastic handle and shaft as standard. The handle is IP65 protected, padlockable in the OFF-position and with door interlock in the ON-position.The shaft is adjustable for a range of installation depths. OS1250DA: a fuse replacement tool is integrated in the fuse cover.
Product identifiers
SKU: 1SCA022726R8460
Specifications
| Cable entry | Other |
| Number of poles | 4 |
| Suitable for fuses | NH0 |
| Motor drive optional | no |
| With error protection | - |
| Motor drive integrated | no |
| Version as main switch | yes |
| Type of control element | Long turning handle |
Documents
Deeplink product page
Deeplink REACH
Reach AC Switches and Fusegear 2024-10-20 Annex.pdf
Instructions for use
34OS200-250 rev Z (1).pdf
Product data sheet
Declaration RoHS
RoHs Declaration AC Switches and Fusegear 2023-10-02.pdf
Declaration DOC CE (Declaration of conformity CE)
CE OS250 2020-09-14 E.pdf
Declaration EPD (Environmental Product Declaration)
1SCC311197D0201_OS200-250_PEP Ecopassport_APPROVED.pdf
