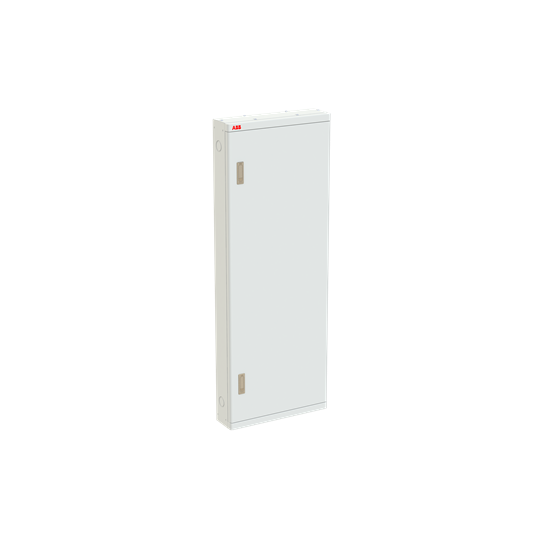

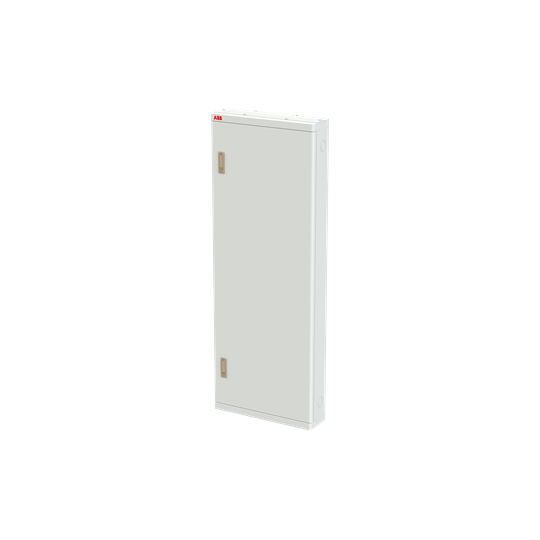

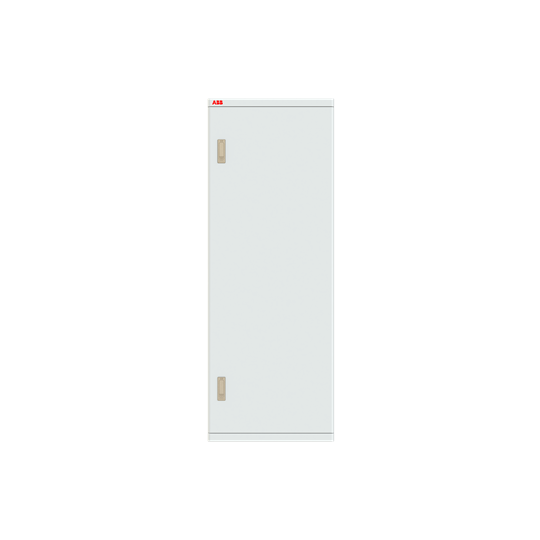

Protecta Plus DB 20 Way 250A

Name: Protecta Plus DB 20 Way 250A
Brand: ABB
SKU: 1SKT132001C0001

Product identifiers

SKU: 1SKT132001C0001

Specifications

Depth	1220
Width	125
Colour	Grey
Height	450
With lock	yes
RAL-number	7035
Cover model	Closed
Inner depth	129
Type of door	Compartment door
Built-in depth	130
Number of rows	-
Impact strength	IK07
Mounting method	Surface mounted
Housing material	Steel
Type of covering	Door
Circuit integrity	None
Number of modules	60
Extension possible	yes
Surface protection	Powder coating
With mounting plate	no
Nominal current (In)	250
Transparent cover/door	no
Number of conduit inlets	-
Suitable for outdoor use	no
Degree of protection (IP)	IP43
Degree of protection (NEMA)	-
Cover with overpressure release	-
Material plate thickness cabinet	1
Suitable for lightning protection	no
Material plate thickness door/cover	1
Width in number of modular spacings	-
Number of openings for flange plates	2
Protection class according to IEC 61140	II
