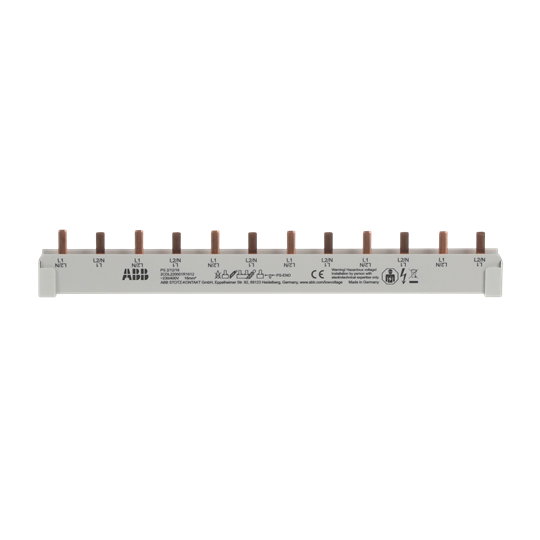

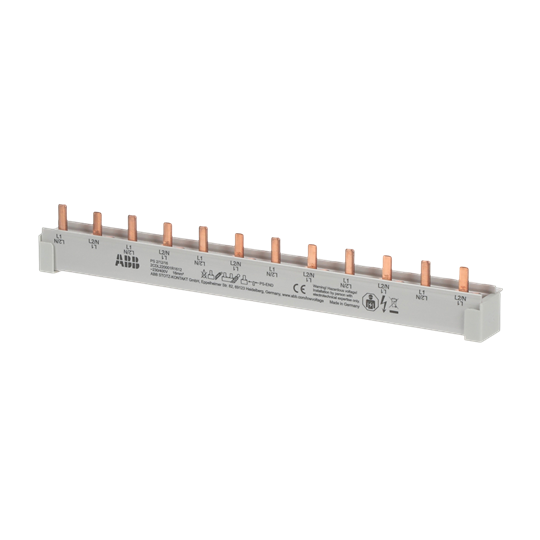

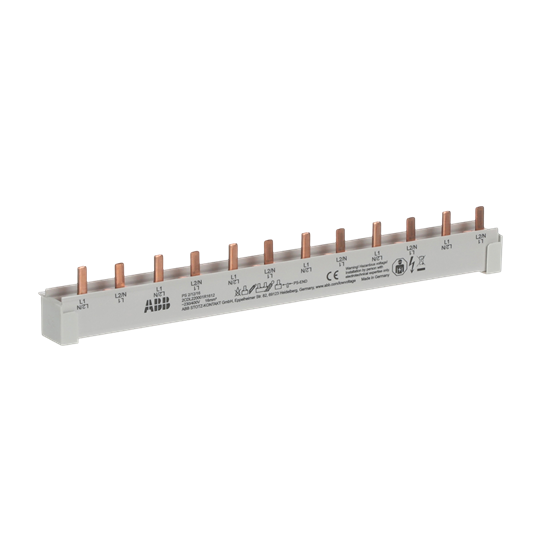

PS2/12/16 COMP B/BAR DP 16mm & 12MOD

Name: PS2/12/16 COMP B/BAR DP 16mm & 12MOD
Brand: ABB
SKU: 2CDL220001R1612

2-phase busbars, pin distance 17.6 mm, end caps PS-END
* Part number: PS2/12/16

Product identifiers

SKU: 2CDL220001R1612

Specifications

Colour	Grey
Length	214
Insulated	yes
Module width	17.6
Cross section	16
Number of poles	12
Number of phases	2
Can be cut to size	-
Rated surge voltage	-
Rated permanent current Iu	80
Type of electric connection	Pin
Suitable for number of devices	6
Max. rated operation voltage Ue	690
Width in number of modular spacings	12.0
Suitable for devices with N-conductor	no
Rated short-time withstand current lcw	25
Conditioned rated short-circuit current Iq	-
Suitable for devices with auxiliary switch	no
