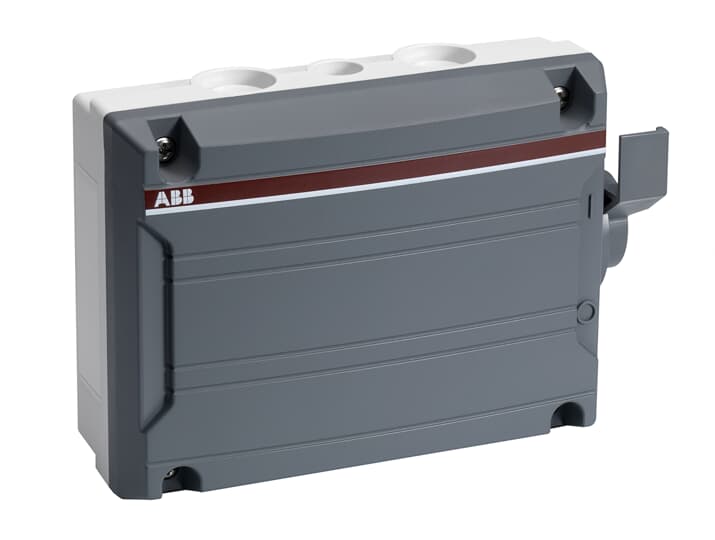

25A 6P Grey Plstc Side Op. Sfty sw. IP65

Name: 25A 6P Grey Plstc Side Op. Sfty sw. IP65
Brand: ABB
SKU: 2CMA142422R1000

Product identifiers

SKU: 2CMA142422R1000

Specifications

Depth	65
Width	190
Height	130
Interlockable	yes
Number of poles	6
Number of switches	1
Device construction	Complete device in housing
Motor drive optional	no
Colour control element	Grey
Motor drive integrated	no
Version as main switch	yes
Rated operating voltage
Type of control element	Rocker lever
Switching power at 400 V	11
Version as safety switch	yes
Voltage release optional	no
Rated permanent current Iu	32
With pre-assembled cabling	-
Degree of protection (NEMA)	Other
Suitable for floor mounting	-
Version as reversing switch	no
Max. rated operation voltage Ue AC	690
Suitable for front mounting 4-hole	no
Suitable for front mounting centre	no
Suitable for intermediate mounting	-
Width in number of modular spacings	-
Rated operation power at AC-3, 400 V	-
Degree of protection (IP), front side	IP65
Rated operation power at AC-23, 400 V	11
Rated short-time withstand current lcw	-
Version as emergency stop installation	no
Version as maintenance-/service switch	yes
Rated permanent current at AC-21, 400 V	-
Rated permanent current at AC-23, 400 V	25
Conditioned rated short-circuit current Iq	-
Suitable for distribution board installation	yes
Type of electrical connection of main circuit	-
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	0
