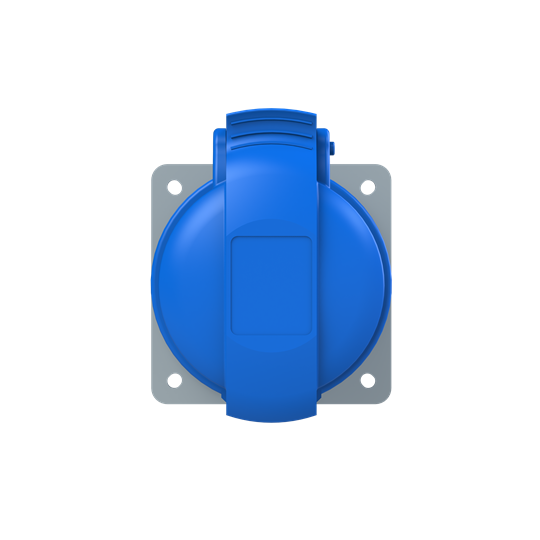

2P+E Panel Out, 32A, 250V, blu, 6h, IP44
ABB

2P+E Panel Out, 32A, 250V, blu, 6h, IP44

Panel mounted socket outlets- 32A, IP44 splash proof thermoplastic (PA)
* Cable area 2.5 - 10mm?
* Type: 2P+E
* Terminals/Poles: 3
* Colour code: Blue
* Voltage: 200-250 V
* Part Number: 232-RU6

Product identifiers

SKU: 2CMA193242R1000

Categories

Panel Mounted Socket Outlets Wiring Accessories & Installation Sockets & Switches Outdoor Sockets

Specifications

Material Plastic
RAL-number 7001
IEC-amperage 32
Rated voltage
Military model no
Number of poles 3
Rated frequency
Contact material CuZn
Connection system Screwed terminal
Flange size vertical 75
Flange size horizontal 75
Surface treatment contacts Untreated
Drill hole distance horizontal 61
Amperage according to UL/CSA (for UL-version) 32

Documents
