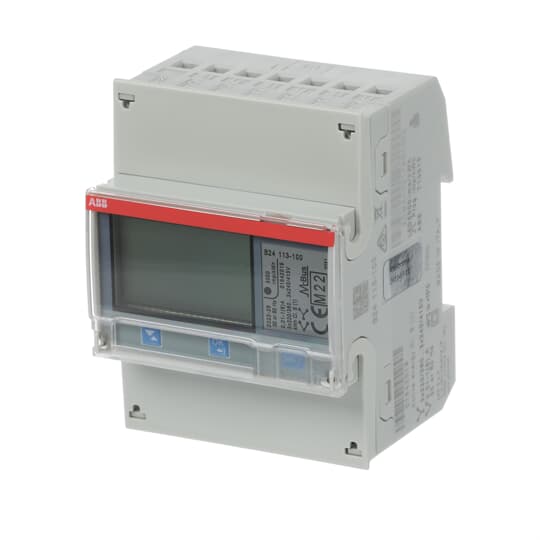

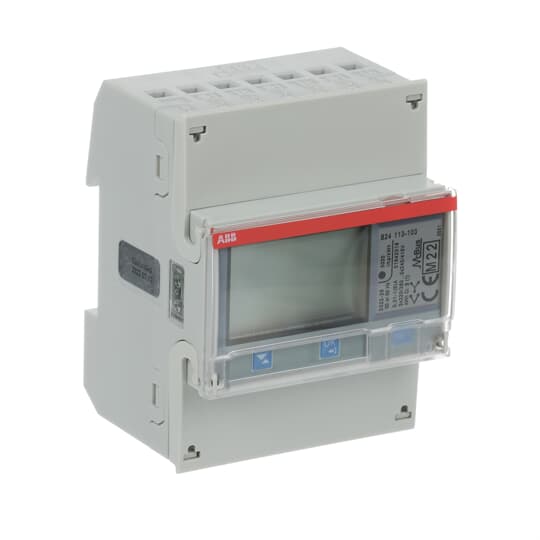

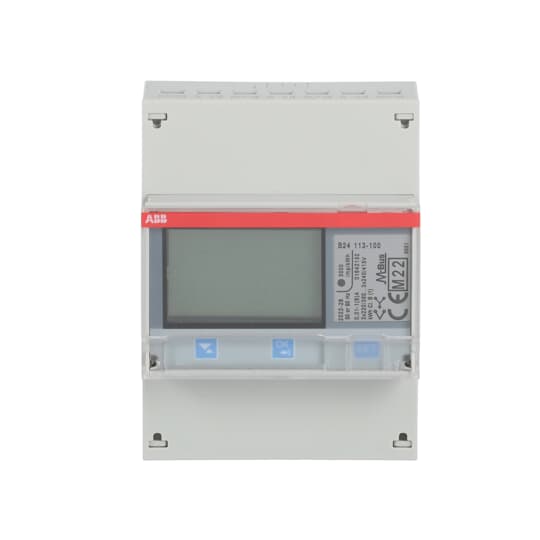

B24 113-100 TP METER CT CONNECTED M-BUS
1 / 3
B24 113-100 TP METER CT CONNECTED M-BUS
6 A transformer connected, 4 DIN - Steel Active energy, pulse output
* Part number: B24 113 - 100
* The B series EQ meters are meters for single phase and three phase metering. The B series meters are mounted on a DIN rail and are suitable for installation in distribution boards and small enclosures such as consumer units. The B series are suitable in applications where there is a need for reliable energy measurements and where space is limited.
* Part number: B24 113 - 100
* The B series EQ meters are meters for single phase and three phase metering. The B series meters are mounted on a DIN rail and are suitable for installation in distribution boards and small enclosures such as consumer units. The B series are suitable in applications where there is a need for reliable energy measurements and where space is limited.
Product identifiers
SKU: 2CMA100179R1000
Specifications
| Depth | 65 |
| Model | - |
| Width | 70 |
| Height | 26.5 |
| Approval | Measuring Instruments Directive |
| Frequency | |
| Pole type | Four conductor |
| Calibrated | yes |
Documents
Deeplink product page
Deeplink REACH
9AKK108467A9482_en_E_Reach Declaration - ABB S.p.A. Vittuone.pdf
Dimensioned drawing
2CMC485003M0201_en_B23_B24_User_Manual.pdf
Instructions for use
2CMC485019M0201 Rev G.pdf
Product data sheet
Declaration DOC CE (Declaration of conformity CE)
Declaration EPD (Environmental Product Declaration)
ABB EQ Meters - Product Environmental Profile.pdf
