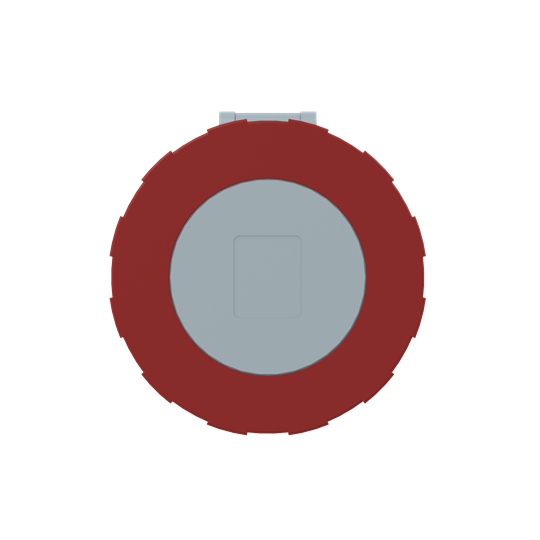

Red IP67 3PN+E flange panel skt,63A 400V

Name: Red IP67 3PN+E flange panel skt,63A 400V
Brand: ABB
SKU: 2CMA167396R1000

Product identifiers

SKU: 2CMA167396R1000

Specifications

Material	Plastic
RAL-number	7001
IEC-amperage	63
Rated voltage
Military model	no
Number of poles	5
Rated frequency
Contact material	CuZn
Insert direction	Straight
Connection system	Screwed terminal
Clock hour position	6
Flange size vertical	104
Identification colour	Red
Flange size horizontal	104
Degree of protection (IP)	IP67
Surface treatment contacts	Untreated
Drill hole distance vertical	61
Drill hole distance horizontal	61
Voltage according to EN 60309-2	400-440 V (50+60 Hz) red
Amperage according to UL/CSA (for UL-version)	63
