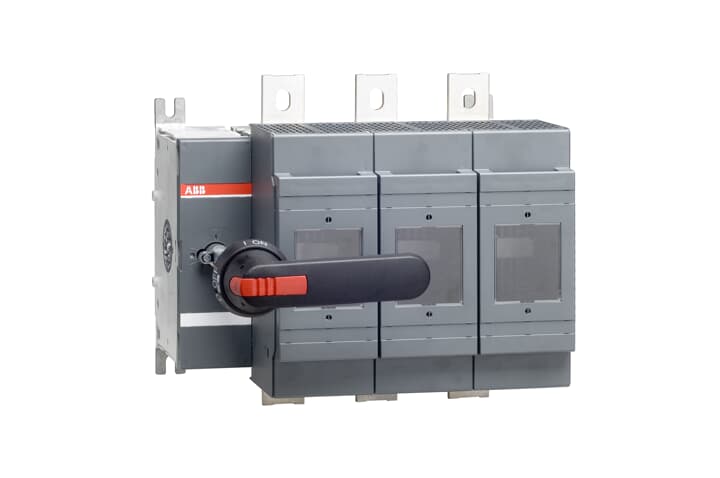

800A 3P DIN/O-2
800A 3P DIN/O-2
OS200...1250 DIN Front Operated Switch Fuses - Mechanism at the end of the switch
* Part number: OS800D03P
* Including terminal bolt kit, a black ON-OFF plastic handle and shaft as standard. The handle is IP65 protected, padlockable in the OFF-position and with door interlock in the ON-position.The shaft is adjustable for a range of installation depths. OS1250DA: a fuse replacement tool is integrated in the fuse cover.
* Part number: OS800D03P
* Including terminal bolt kit, a black ON-OFF plastic handle and shaft as standard. The handle is IP65 protected, padlockable in the OFF-position and with door interlock in the ON-position.The shaft is adjustable for a range of installation depths. OS1250DA: a fuse replacement tool is integrated in the fuse cover.
Product identifiers
SKU: 1SCA022825R4880
Specifications
| Cable entry | Other |
| Number of poles | 3 |
| Suitable for fuses | NH3 |
| Motor drive optional | no |
| With error protection | - |
| Motor drive integrated | no |
| Version as main switch | yes |
| Type of control element | Long turning handle |
Documents
Deeplink product page
Deeplink REACH
Reach AC Switches and Fusegear 2024-10-20 Annex.pdf
Instructions for use
34OS600-800 rev M (1).pdf
Product data sheet
Declaration RoHS
RoHs Declaration AC Switches and Fusegear 2023-10-02.pdf
Declaration DOC CE (Declaration of conformity CE)
1SCC311112D2704_deenfrit_F_Declaration of Conformity - OS600, OS630, OS800_.pdf
Declaration EPD (Environmental Product Declaration)
1SCC311202D0201_OS600-800_PEP Ecopassport.pdf
