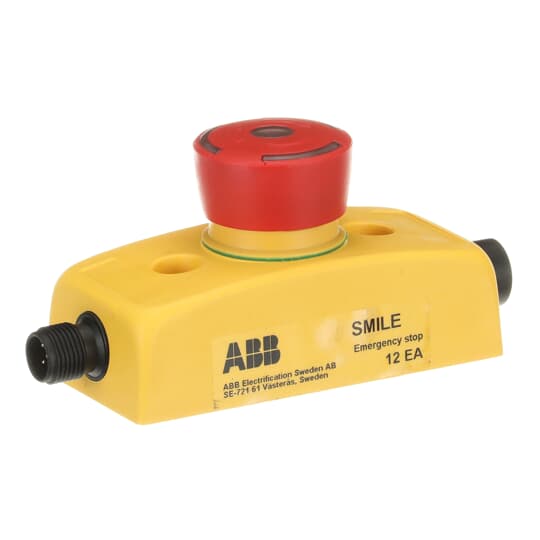

Smile 12 EA Type ABB
Smile 12 EA Type ABB
Smile emergency stop with LED
* Part number: 30-051-02
* Two five pole M12 connectors, one on each end of the unit
* Terminal blocks
* Robust
* Push button IP65, enclosure IP67
* Push button IP65, connector IP20
* Available as safety stop (black pushbutton)
* With LED info in pushbutton
* Part number: 30-051-02
* Two five pole M12 connectors, one on each end of the unit
* Terminal blocks
* Robust
* Push button IP65, enclosure IP67
* Push button IP65, connector IP20
* Available as safety stop (black pushbutton)
* With LED info in pushbutton
Product identifiers
SKU: 2TLA030051R0200
Specifications
| Diameter cap | - |
| Hole diameter | - |
| With lighting | no |
| Mounting method | Surface mounting |
| Unlocking method | Other |
| Supply voltage lamp | - |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 1 |
Documents
Deeplink product page
Deeplink REACH
2CMT2022-006480.pdf
Dimensioned drawing
2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf
Instructions for use
Smile_10-11-12_Product_Manual_(EN)_ABB_revE_2TLC172171M0201.pdf
Product data sheet
Declaration RoHS
2CMT2022-006499_Safety Products_revB.pdf
Declaration DOC CE (Declaration of conformity CE)
