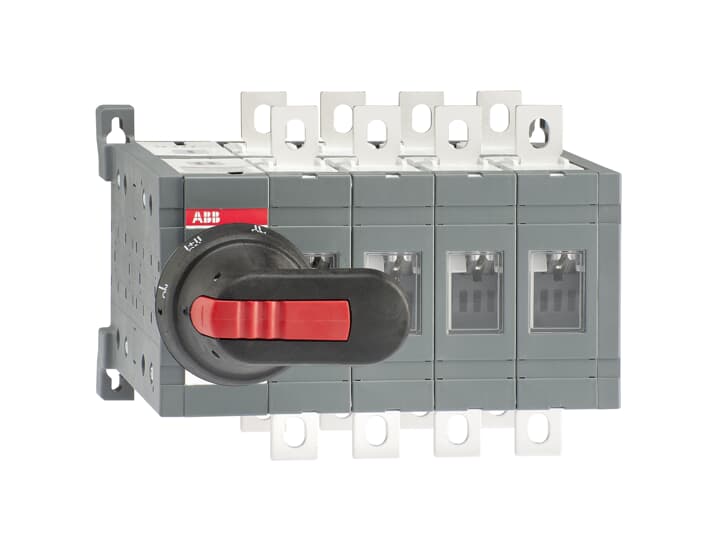

250A 4P Closed Trans Man Changeover Sw
""Manual OTM160...2500 manual change-over switches, I - I+II - II -operation,closed transition
* Part number: OTM250E04CLP
* Including dual power source for the motor operator. Motor operator voltage Ue = 220-240v AC
* Including a handle for manual operation, PCB connectors, bolt kit with nut and washers for all terminals.
* Types OTM160...1600_C_D. including a voltage sensing kit on the bottom of the switch, available on request, please add the letter "B" to the type code.
* Types OTM160-1600E include a clamp for the handle and spare fuses.
* Types OTM160...250_WC_D_ are equipped with extended phase distance.""
* Part number: OTM250E04CLP
* Including dual power source for the motor operator. Motor operator voltage Ue = 220-240v AC
* Including a handle for manual operation, PCB connectors, bolt kit with nut and washers for all terminals.
* Types OTM160...1600_C_D. including a voltage sensing kit on the bottom of the switch, available on request, please add the letter "B" to the type code.
* Types OTM160-1600E include a clamp for the handle and spare fuses.
* Types OTM160...250_WC_D_ are equipped with extended phase distance.""
Product identifiers
SKU: 1SCA108605R1001
Categories
Features
|
Depth
|
160
|
|
Width
|
205
|
|
Height
|
150
|
|
Interlockable
|
yes
|
|
Number of poles
|
4
|
|
Number of switches
|
1
|
|
Device construction
|
Built-in device plug-in technique
|
|
Motor drive optional
|
no
|
|
Colour control element
|
Black
|
|
Motor drive integrated
|
no
|
|
Version as main switch
|
yes
|
|
Rated operating voltage
|
|
|
Type of control element
|
Long turning handle
|
|
Switching power at 400 V
|
140
|
|
Version as safety switch
|
no
|
|
Voltage release optional
|
no
|
|
Rated permanent current Iu
|
-
|
|
With pre-assembled cabling
|
-
|
|
Degree of protection (NEMA)
|
1
|
|
Suitable for floor mounting
|
no
|
|
Version as reversing switch
|
no
|
|
Max. rated operation voltage Ue AC
|
1000
|
|
Suitable for front mounting 4-hole
|
yes
|
|
Suitable for front mounting centre
|
no
|
|
Suitable for intermediate mounting
|
no
|
|
Width in number of modular spacings
|
-
|
|
Rated operation power at AC-3, 400 V
|
-
|
|
Degree of protection (IP), front side
|
IP20
|
|
Rated operation power at AC-23, 400 V
|
140
|
|
Rated short-time withstand current lcw
|
8
|
|
Version as emergency stop installation
|
no
|
|
Version as maintenance-/service switch
|
yes
|
|
Rated permanent current at AC-21, 400 V
|
250
|
|
Rated permanent current at AC-23, 400 V
|
250
|
|
Conditioned rated short-circuit current Iq
|
-
|
|
Suitable for distribution board installation
|
yes
|
|
Type of electrical connection of main circuit
|
Screw connection
|
|
Number of auxiliary contacts as change-over contact
|
0
|
|
Number of auxiliary contacts as normally open contact
|
0
|
|
Number of auxiliary contacts as normally closed contact
|
0
|
