Depth	35
Width	35
Height	54.4
Nominal current	10
Material contact	Silver nickel (AgNi)
Drive, polarization	Polarized
With LED indication	no
Complete with socket	no
Operating voltage DC
Max. starting current	-
Type of switch contact	Single contact
With detachable clamps	no
Degree of protection (IP)	IP40
Drive, switching attitude	Mono stable
Material of contact insert	-
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Voltage type for actuating	AC
Material of contact surface	Other
Type of electric connection	Other
With forced-guided contacts	no
Rated control supply voltage DC
Voltage type (operating voltage)	AC/DC
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Number of contacts as change-over contact	2
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0
Relay technology category according to IEC 61810-7	RT I

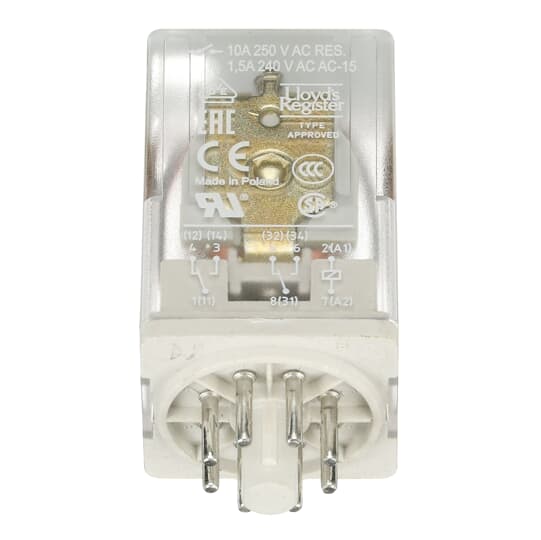

CR-U024AC2 Pluggable relay 2C/O 24VAC
