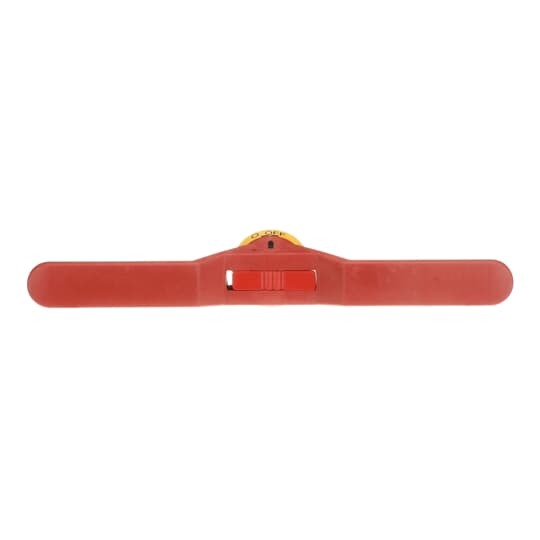

RED BUTTERFLY HANDLE ON/OFF
Operating handles - Pistol type handles, for base and DIN-rail mounted switches
* Part number: OHY200J12P
* Suitable for switches OT1000...2500, for shaft diameter 12 mm
* Indication OHB and OHY: I-0, ON-OFF
* IP65, NEMA 1, 3R, 12, padlockable with three padlocks in OFF-position, door interlock in ON-position. Screw fixing from the back side of the handle. No screws on the front ensures double insulation.
* The type and the ordering numbers are for one piece.
* Part number: OHY200J12P
* Suitable for switches OT1000...2500, for shaft diameter 12 mm
* Indication OHB and OHY: I-0, ON-OFF
* IP65, NEMA 1, 3R, 12, padlockable with three padlocks in OFF-position, door interlock in ON-position. Screw fixing from the back side of the handle. No screws on the front ensures double insulation.
* The type and the ordering numbers are for one piece.
Product identifiers
SKU: 1SCA101587R1001
Specifications
| Colour | Red |
| With key lock | - |
| Padlock locking | - |
| With extension shaft | no |
| With restart blockage | - |
| Degree of protection (NEMA) | - |
| Suitable for emergency stop | no |
| Suitable for switch disconnector | yes |
