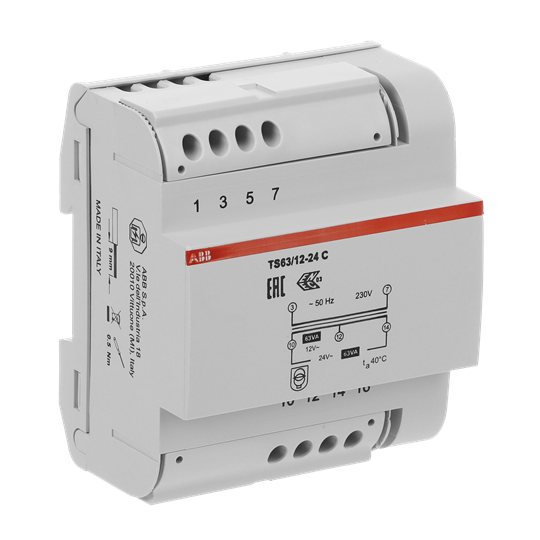

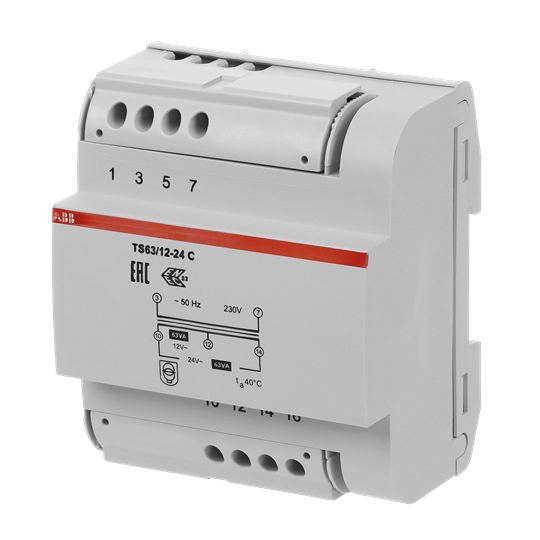

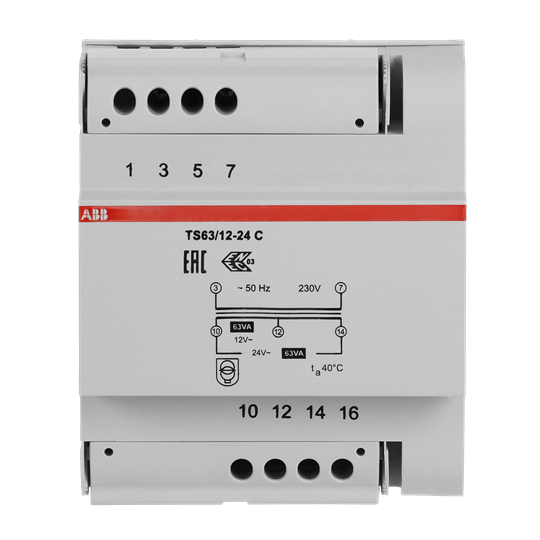

TS63/12-24C TRANSFORMER 63VA 12-24V

Name: TS63/12-24C TRANSFORMER 63VA 12-24V
Brand: ABB
SKU: 2CSM631043R0811

Product identifiers

SKU: 2CSM631043R0811

Specifications

Width	87.5
Height	85
Length	120
Max. power loss	-
Modular version	yes
Primary voltage	230
Surface mounting	no
Max. output power	63
With on/off switch	no
Max. output current	2.63
Secondary voltage 1	-
Secondary voltage 2	-
Secondary voltage 3	-
Type of transformer	-
Secondary amperage 1	-
Secondary amperage 2	-
Secondary amperage 3	-
Temperature protection	yes
Short-circuit protected	yes
Flush-mounted installation	no
Width in number of modular spacings	5
