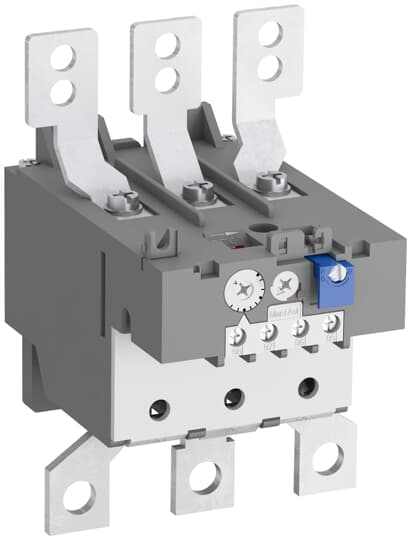

TA200DU175 Thermal Overload (130-175A)
TA200DU thermal overload relay - 66.0 to 200A
* Part number: TA200DU-175
* The TA200DU thermal overload relays are economic electromechanical protection devices for the main circuit. They offer reliable protection for motors in the event of overload or phase failure. The TA200DU have trip class 10A
* The thermal overload relays are three pole relays with bimetal tripping elements. The motor current flows through the bimetal tripping elements and heats them directly and indirectly. In case of an overload (over current), the bimetal elements bent as a result of the heating. This leads to a release of the relay and a change of the contacts switching position (95-96 / 97-98).
* Manual or automatic reset selectable
* Phase loss sensitive acc. to IEC/EN 60947-4-1
* TEST and STOP function - Trip indication on the front
* Temperature compensation
* Suitable for three- and single-phase applications
* Part number: TA200DU-175
* The TA200DU thermal overload relays are economic electromechanical protection devices for the main circuit. They offer reliable protection for motors in the event of overload or phase failure. The TA200DU have trip class 10A
* The thermal overload relays are three pole relays with bimetal tripping elements. The motor current flows through the bimetal tripping elements and heats them directly and indirectly. In case of an overload (over current), the bimetal elements bent as a result of the heating. This leads to a release of the relay and a change of the contacts switching position (95-96 / 97-98).
* Manual or automatic reset selectable
* Phase loss sensitive acc. to IEC/EN 60947-4-1
* TEST and STOP function - Trip indication on the front
* Temperature compensation
* Suitable for three- and single-phase applications
Product identifiers
SKU: 1SAZ421201R1005
Specifications
| Release class | CLASS 10 A |
| Mounting method | Direct attachment |
| Reset function input | no |
| Adjustable current range | |
| Reset function automatic | yes |
| Reset function push-button | yes |
| Max. rated operation voltage Ue | 690 |
| Type of electrical connection of main circuit | Screw connection |
