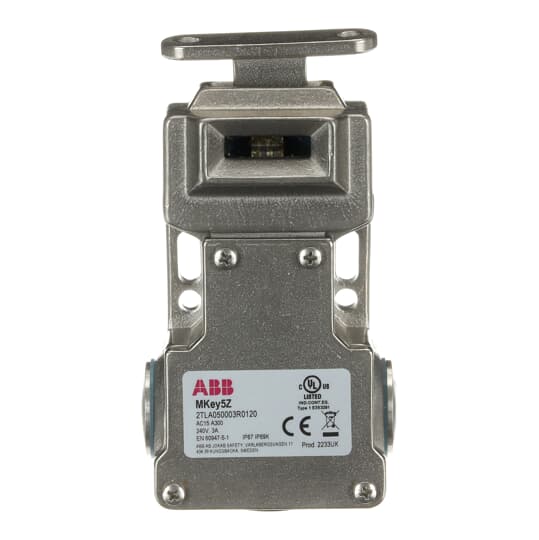

M5Key5Z,5S M20 2NC/1NO Std. Key

Name: M5Key5Z,5S M20 2NC/1NO Std. Key
Brand: ABB
SKU: 2TLA050003R0120

MKey5 Interlock switch - full stainless steel
* Part number: MKey5Z - 12N
* Full stainless steel
* 2NC + 1NO (actuator in)
* 4 actuating positions
* Holding force 12 or 40N
* Up to PL e/Cat.4
* IP69K enclosure protection

Product identifiers

SKU: 2TLA050003R0120

Specifications

Width sensor	58
Forced opening	yes
Coating housing	Other
Height of sensor	103.5
Housing material	Metal
Length of sensor	37.5
Type of interface	Other
With status indication	no
Construction type housing	Special construction
Degree of protection (IP)	IP67
Type of switching contact	Other
Degree of protection (NEMA)	1
Type of electric connection	-
Suitable for safety functions	yes
Explosion safety category for gas	None
Explosion safety category for dust	None
Number of safety auxiliary contacts	0
Ambient temperature during operating
Number of contacts as change-over contact	0
Rated operation current Ie at AC-15, 24 V	3
Rated operation current Ie at DC-13, 24 V	0.2
Rated operation current Ie at AC-15, 125 V	3
Rated operation current Ie at AC-15, 230 V	3
Rated operation current Ie at DC-13, 125 V	0.2
Rated operation current Ie at DC-13, 230 V	0.2
Type of interface for safety communication	Other
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	2
