MKey5,M20,2NC/1NO,SSH,Std Key

Name: MKey5,M20,2NC/1NO,SSH,Std Key
Brand: ABB
SKU: 2TLA050003R0110

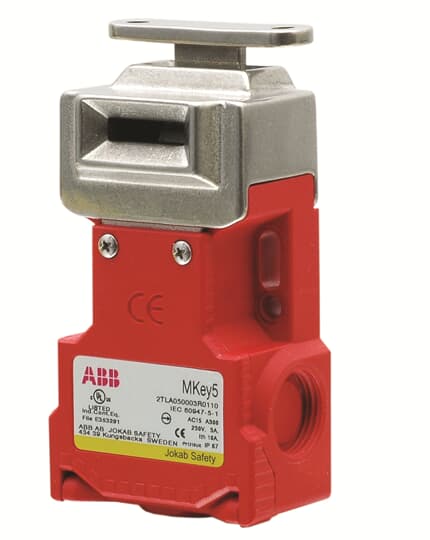

MKey5 Interlock switch - stainless steel head
* Part number: MKey5 - 12N
* Plastic body, stainless steel head
* 2NC + 1NO (actuator in)
* 4 actuating positions
* Holding force 12 or 40N
* Up to PL e/Cat.4
* IP67 rating

Product identifiers

SKU: 2TLA050003R0110

Specifications

Width sensor	58
Forced opening	yes
Coating housing	Other
Height of sensor	100.4
Housing material	Plastic
Length of sensor	34.5
Type of interface	Other
With status indication	no
Construction type housing	Special construction
Degree of protection (IP)	IP67
Type of switching contact	Other
Degree of protection (NEMA)	1
Type of electric connection	-
Suitable for safety functions	yes
Explosion safety category for gas	None
Explosion safety category for dust	None
Number of safety auxiliary contacts	0
Ambient temperature during operating
Number of contacts as change-over contact	0
Rated operation current Ie at AC-15, 24 V	3
Rated operation current Ie at DC-13, 24 V	0.2
Rated operation current Ie at AC-15, 125 V	3
Rated operation current Ie at AC-15, 230 V	3
Rated operation current Ie at DC-13, 125 V	0.2
Rated operation current Ie at DC-13, 230 V	0.2
Type of interface for safety communication	Other
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	2
