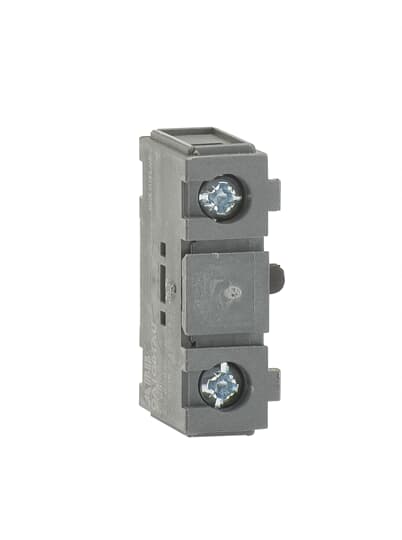

NORMALLY CLSD GOLD AUX C/TACT
NORMALLY CLSD GOLD AUX C/TACT
Auxiliary contact blocks, IP20, for OT16...125F/FT_ and OT16...125M_
* Part number: OA1G01AU
* Mountable on left side, max. 2 pcs
* Contact numbering according to EN 50013. The type and and the ordering numbers are for one piece. Snap-on mounting to the side of the switch. Ith = 16A, cable cross section max. 2 x 2.5 mm2. Early-break type OA1G10.
* Types _AU are gold plated for extremely difficult circumstances and low voltages.
* Part number: OA1G01AU
* Mountable on left side, max. 2 pcs
* Contact numbering according to EN 50013. The type and and the ordering numbers are for one piece. Snap-on mounting to the side of the switch. Ith = 16A, cable cross section max. 2 x 2.5 mm2. Early-break type OA1G10.
* Types _AU are gold plated for extremely difficult circumstances and low voltages.
Product identifiers
SKU: 1SCA022436R7830
Specifications
| Model | - |
| Lamp holder | - |
| Mounting method | Side mounting |
| Type of electric connection | Screw connection |
| Number of fault-signal switches | - |
| Number of contacts as change-over contact | - |
| Rated operation current Ie at AC-15, 230 V | - |
| Number of contacts as normally open contact | - |
Documents
Deeplink product page
Deeplink REACH
Reach AC Switches and Fusegear 2024-10-20 Annex.pdf
Instructions for use
34OA1H01_10_rev U (2).pdf
Product data sheet
Declaration RoHS
RoHs Declaration AC Switches and Fusegear 2023-10-02.pdf
Declaration DOC CE (Declaration of conformity CE)
CE OA_ 1SCC390020D2704 2020-10-20 E.pdf
