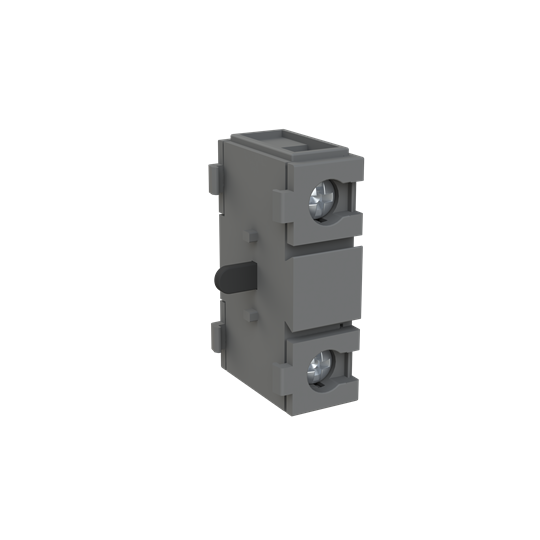

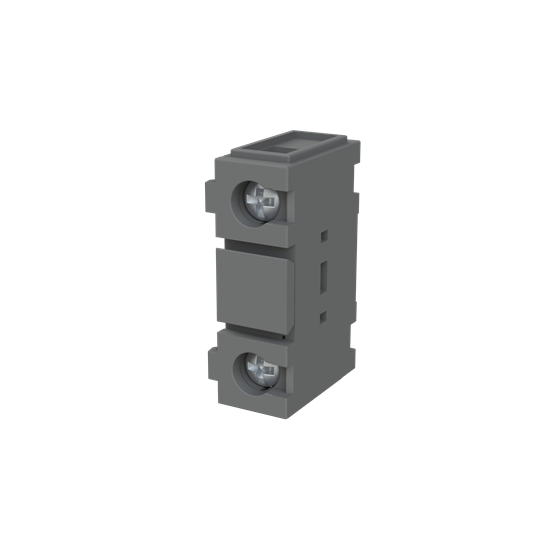

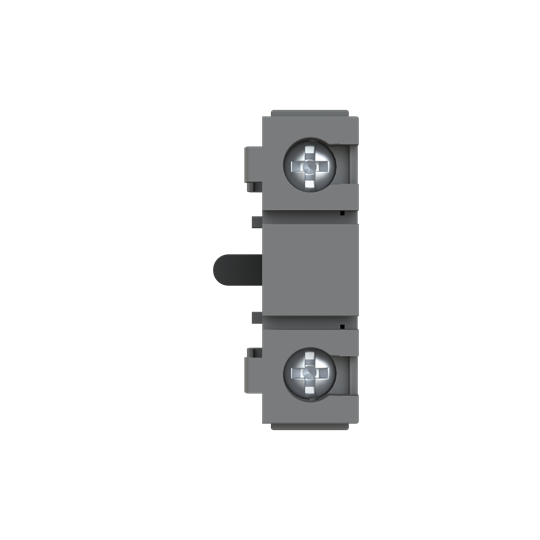

NORMALLY OPEN AUX CONTACT
1 / 4
NORMALLY OPEN AUX CONTACT
Auxiliary Contacts - Auxiliary contacts for OS32G ... 1250
* Part number: OA1G10
* Mounting on the left side of the switch: Max. 8 auxiliary contact blocks with the OEA28 module. Mounting under the mechanism cover: OS200...250: Max 4 test contacts or 2 test contacts + 2 test indication contacts. - OS315...400: Max 4 test contacts and 4 test indication contacts. The test contacts can be used as standard auxiliary contacts as well. Auxiliary contacts for 3 + N types only with the OEA28 module.
* Part number: OA1G10
* Mounting on the left side of the switch: Max. 8 auxiliary contact blocks with the OEA28 module. Mounting under the mechanism cover: OS200...250: Max 4 test contacts or 2 test contacts + 2 test indication contacts. - OS315...400: Max 4 test contacts and 4 test indication contacts. The test contacts can be used as standard auxiliary contacts as well. Auxiliary contacts for 3 + N types only with the OEA28 module.
Product identifiers
SKU: 1SCA022353R4970
Specifications
| Model | - |
| Lamp holder | - |
| Mounting method | Side mounting |
| Type of electric connection | Screw connection |
| Number of fault-signal switches | - |
| Number of contacts as change-over contact | - |
| Rated operation current Ie at AC-15, 230 V | - |
| Number of contacts as normally open contact | 1 |
Documents
Deeplink product page
Deeplink REACH
Reach AC Switches and Fusegear 2024-10-20 Annex.pdf
Instructions for use
34OA1H01_10_rev U (2).pdf
Product data sheet
Declaration RoHS
RoHs Declaration AC Switches and Fusegear 2023-10-02.pdf
Declaration DOC CE (Declaration of conformity CE)
CE OA_ 1SCC390020D2704 2020-10-20 E.pdf
